Part Number: HA13536F









Description: The HA13536F is a 3-phase brushless DC motor driver IC with digital speed control. It is being developed for direct dri...


Urgent Purchase

HA13536F General Description


The HA13536F is a 3-phase brushless DC motor driver IC with digital speed control. It is being developed for direct drive of the spindle motor of 5 V floppy disk drives with a height of 3/4" or less. It has the following functions and features.

HA13536F Maximum Ratings

Item Symbol Value Unit Notes
Power supply voltage VCC 7 V 1
Input voltage Vin 0 to VCC + 0.3 V 2
Peak output current IOP 1.0 A
Normal output current IO 0.7 A
Power dissipation PT 1.5 W 3
Junction temperature Tj +150 °C 1
Storage temperature range Tstg 55 to +125 °C
Notes: 1. The operating ranges is:
            VCC = 4.25 to 6.5 V
            Tjopr = 0 to +125°C
2. Applied to the CE, CLK, and RPM SEL pins.
3. Permissible value when Tpin = 113°C and thermal resistance is as follows:

    jpin  25°C/W
    ja1  55°C/W (when mounted on a metal substrade)
    ja2  80°C/W (when mounted on a glass epoxy substrade)

HA13536F Features

·  Low saturation voltage, typically 1.15 V (at 0.7 A)
·  Soft switching drive circuit
·  No need for an output snubber circuit

HA13536F Typical Application

·  1.0 A per phase, 3-phase drive circuit (current driver)
·  Digital speed control circuit
·  FG Amp
·  Index circuit
·  Current limiter circuit
·  Over-temperature shutdown circuit (OTSD)

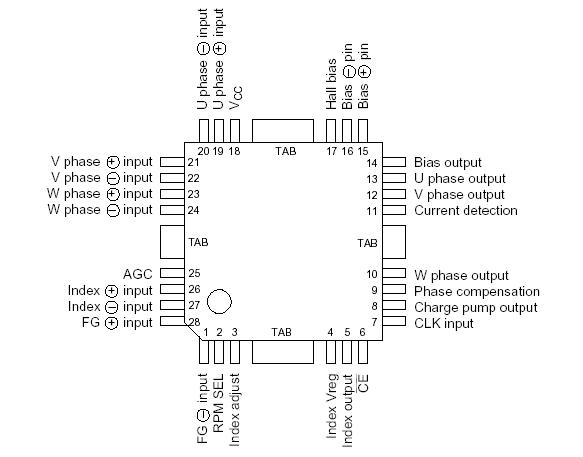

HA13536F Connection Diagram

HA13536F Connection Diagram
