Part Number: HA13565F









Description: HA13565F is a 3-phase brushless DC motor driver IC with digital speed control. It is developed for direct drive of the ...


Urgent Purchase

HA13565F General Description


HA13565F is a 3-phase brushless DC motor driver IC with digital speed control. It is developed for direct drive of the spindle motor of 5V floppy disk drives. It has the following functions and features.

HA13565F Maximum Ratings

Item Symbol Value Unit Notes
Power supply voltage VCC 7.0 V 1
Peak output current Iop 1.0 A
Normal output current Io 0.7 A
Input voltage Vi 0 to VCC + 0.3 V 2
Power dissipation PT 1.5 W 3
Junction temperature Tj +150 °C 1
Storage temperature range Tstg 55 to +125 °C
Notes: 1. The operating range is as follows.
            VCC = 4.25 to 6.5 V
            Tjop = 0 to +125°C
2. Applied to the logic input pin.
3. Permissible value when Tpin = 113°C and thermal resistance is as follows:
   j-pin  25°C/W
   j-a1 55°C/W (when mounted on a metal substrate)
   j-a2  80°C/W (when mounted on a glass epoxy substrate)

HA13565F Features

·  Low saturation voltage 0.5V Typ (at 0.7A)
·  Soft switching drive circuit
·  Small surface mount package

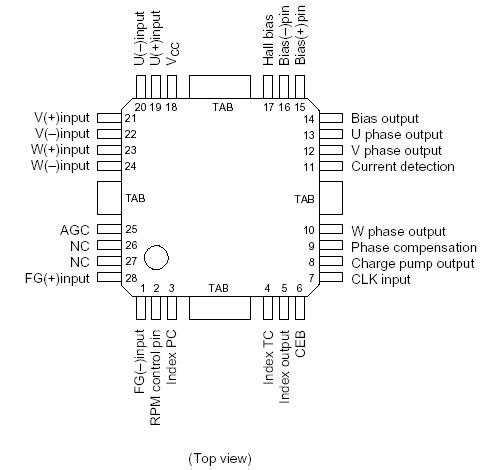

HA13565F Connection Diagram

HA13565F Connection Diagram
