MFG:HITACHI Package Cooled:DIP
MFG: HITACHI
Package Cooled: DIP
Description: The HA17408P is an 8-bit monolithic D/A converter that incorporates a reference current amplifier, an ...

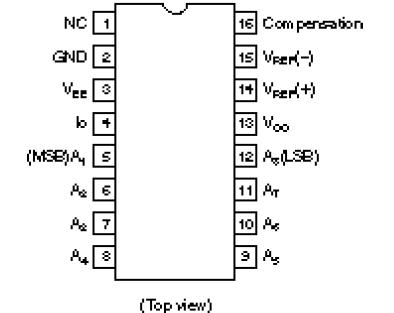

The HA17408P is an 8-bit monolithic D/A converter that incorporates a reference current amplifier, an R-2R resistor ladder, and eight high-speed current switches.
Circuit designers can set the maximum output current to match the needs of their applications by setting the reference voltage and selecting a resistor value.
The reference current is distributed to the current value for each bit by the R-2R resistor ladder, and thus the maximum output current is 255/256 times the reference current. For example, the largest output current that can be acquired for a reference input current of 2.0 mA is 1.992 mA.
The HA17408P can be used in a wide range of applications including CRT displays, stepping motor control, programmable power supplies, audio equipment, and attenuators.
| Item | Symbol | Rated Value | Unit |
| Power-supply voltage | VCC | 5.5 | V |
| VEE | 16.5 | V | |
| Digital input voltage | V5 to V12 | 0 to +5.5 | V |
| Output voltage | VO | 0.5 to 5.2 | V |
| Reference current | I14 | 5.0 | mA |
| Reference amplifier input voltage range | VREF | VCC, VEE | V |
| Allowable power dissipation | PT | 625 | mW |
| Operating temperature | Topr | 20 to +75 | °C |
| Storage temperature | Tstg | 55 to +125 | °C |
HA11
PDF/DataSheet Download
