Part Number: HA17474



MFG: HIT

Package Cooled: 528

D/C: CDIP

Description: HA17474/P is a quad operational amplifier with provided internal frequency compensation and high performance. It can be...


Urgent Purchase

HA17474 General Description


HA17474/P is a quad operational amplifier with provided internal frequency compensation and high performance. It can be applied widely to measuring control equipment and to general use.

HA17474 Maximum Ratings

Item Symbol Ratings Unit
HA17474 HA17474P HA17474RP
Supply voltage VCC +20 +20 +20 V
VEE 20 20 20 V
Common-mode differential voltage Vin(diff) ±30 ±30 ±30 V
Common-mode input voltage VCM ±15 *1 ±15 *1 ±15 *1 V
Power dissipation PT 670 *2 670 *2 670 *2 mW
Operating temperature range Topr 20 to +75 20 to +75 20 to +75 °C
Storage temperature range Tstg 55 to +125 55 to +125 55 to +125 °C
Notes: 1. For supply voltage less than ±15 V, the absolute maximum input voltage is equal to the supply voltage.
            2. Value under Ta  35°C. In case of more than it, 8.3 mW/°C derating shall be done.

HA17474 Features

`  High speed: 1.6 V/s
`  Continuous short-circuit protection
`  Low-noise operational amplifiers
`  Internal frequency compensation
`  Wide operating power supply voltage range: V = ±2 V to ±20 V
`  Pin compatible with HA17324, HA17902

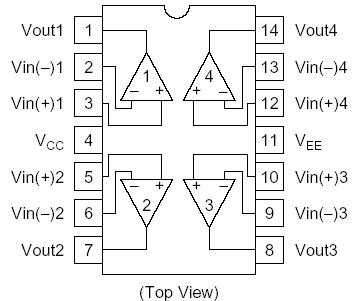

HA17474 Connection Diagram

HA17474 Connection Diagram

HA17474 datasheet

HA17474
PDF/DataSheet Download
