MFG:HIT  Package Cooled:SOP/16  D/C:04+

HA17524FP Product Image

HA1 Series Datasheet download

Five Points

Part Number: HA17524FP



MFG: HIT

Package Cooled: SOP/16

D/C: 04+



Urgent Purchase

HA17524FP Maximum Ratings

Item Symbol Rating Unit Notes
Supply voltage VCC 40 V 1, 2
Collector output current IC 100 mA
Reference output current IREF 50 mA
Current through CT terminal ICT 5 mA
Continuous total power dissipation PT 600 mW 3
Operating free-air temperature range Topr 20 to +75 °C
Storage temperature range Tstg 55 to +125 °C
Notes: 1. With respect to network ground terminal
           2. The reference voltage can be given by connecting the VCC and 5 V reference output pins both to the supply voltage. In this configuration, VCC = 6 V max.
           3. HA17524P: Value at Ta  52.7°C, If Ta > 52.7°C, derate by 8.3 mV/°C

HA17524FP Features

·  Pulse width modulation (PWM)
·  Wide oscillation frequency range: 450 kHz(typ)
·  Low quiescent current: 5 mA typ
·  Good line regulation (0.2% typ) and load regulation (0.4% typ)
·  Independent output stages for 2 channels
·  Wide external circuit applications including single-end and push-pull method
·  Reference power source output stage and switching output stage include current limiting protection circuit.

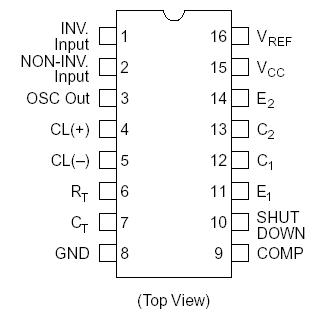

HA17524FP Connection Diagram

HA17524FP Connection Diagram
