Part Number: HA17555



MFG: HITACHI

Package Cooled: DIP



Description: HA17555 Series are ICs designed for accurate time delays or oscillations. It provides both of trigger terminal and rese...


Urgent Purchase

HA17555 General Description


HA17555 Series are ICs designed for accurate time delays or oscillations. It provides both of trigger terminal and reset terminal in order to enable a wide scope of application including Mono Multi Vibrator and Astable Multi Vibrator, and the number of external components is fewer. Further, it's compatible with NE555 of singnetics.

HA17555 Maximum Ratings

Item Symbol HA17555PS/FP HA17555/F Unit
Supply voltage VCC 18 18 V
Discharge current IT 200 200 mA
Output source current Isource 200 200 mA
Output sink current Isink 200 200 mA
Power dissipation*1 PT 600/385 600/385 mW
Operating temperature Topr 20 to +75 20 to +70 °C
Storage temperature Tstg 55 to +125 55 to +125 °C
Note: 1. For the HA17555/PS, This value applies up to Ta = 50°C; at temperatures above this, 8.3mW/°C derating should be applied. For the HA17555F/FP, This value applies up to Ta = 25°C; at temperatures above this, 3.85mW/°C derating should be applied. See notes on SOP Package Usage in Reliability section.

HA17555 Features

·  Mono multi vibrator can be constructed with one resistor and one capacitor.
·  Astable multi vibrator can be constructed with two resistors and one capacitor.
·  Delay time can be established widely from several µ seconds to several hours.
·  Pulse Duty can be controlled.
·  The maximum value of both sink current and source current is 200mA.
·  Direct connection of output to TTL is possible.
·  Temperature/delay time ratio is 50 ppm/°C (typ).
·  Output is normally in the on and off states.

HA17555 Typical Application

·  Delay Time Generator (Mono Multi Vibrator)
·  Pulse Generator (Astable Multi Vibrator)
·  Pulse Width Modulator
·  Pulse Location Modulator
·  Miss Pulse Detector

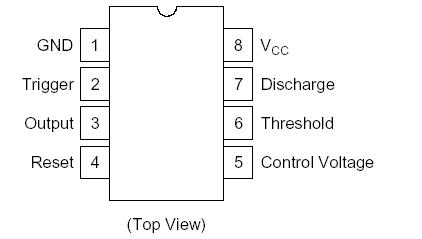

HA17555 Connection Diagram

HA17555 Connection Diagram
