Part Number: HA17723



MFG: HIT

Package Cooled: DIP



Description: The HA17723 high-accuracy general-purpose voltage regulator features a very low stand-by current, (quiescent current) a...


Urgent Purchase

HA17723 General Description


The HA17723 high-accuracy general-purpose voltage regulator features a very low stand-by current, (quiescent current) a low temperature drift, and high ripple rejection ratio. If you need over than 150mA output current, adding external PNP or NPN transistor. This voltage regulator is suitable for various applications, for example, series or parallel regulator, switching regulator.

HA17723 Maximum Ratings

Item Symbol HA17555PS/FP HA17555/F Unit
Supply voltage VCC 40 40 V
Input/Output voltage differential Vdiff (IN-O) 40 40 V
Differential input voltage VIN (diff) ±5 ±5 V
Maximum output current IOUT 150 150 mA
Current from VREF IREF 15 15 mA
Power dissipation PT 830 (Note 1) 625 (Note 2) mW
Operating temperature Topr 0 to +70 / 20 to +75 0 to +70 / 20 to +75 °C
Storage temperature Tstg 55 to +125 55 to +125 °C
Notes: 1. Above 25°C derate by 8.3mW/°C
            2. Allowable temperature of IC junction part, Tj (max), is as shown below.
                Tj (max) = j - a • Pc (max)+Ta
                (j - a is thermal resistance value during mounting, and Pc (max) is the maximum value of IC power dissipation.)
                Therefore, to keep Tj (max)125°C, wiring density and board material must be selected according to the board thermal conductivity ratio shown below.
               Be careful that the value of Pc (max) does not exceed that PT.

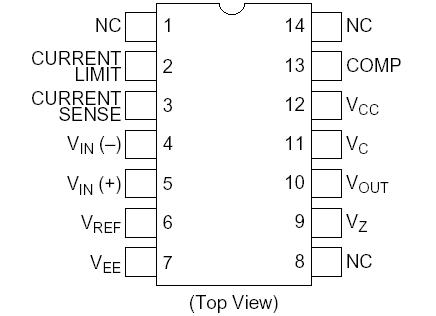

HA17723 Connection Diagram

HA17723 Connection Diagram
