Product Details

Description

Features:

` High voltage gain : 106 dB (Typ)
` Wide output amplitude : ±13 V (Typ) (at R_L 2 kW)
` Shorted output protection
` Adjustable offset voltage
` Internal phase compensation

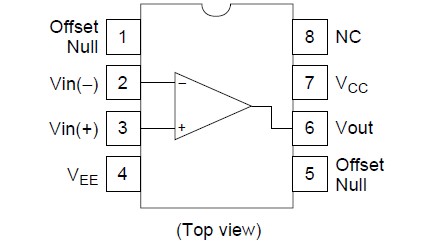

Pinout

Connection Diagram

Specifications

Item	Symbol	Ratings	Ratings	Unit
Item	Symbol	HA17741PS	HA17741	Unit
Power-supply voltage	V_CC	+18	+18	V
Power-supply voltage	V_EE	18	18	V
Input voltage	V_in	±15	±15	V
Differential input voltage	V_in(diff)	±30	±30	V
Allowable power dissipation	P_T	670 *	670 *	mW
Operating temperature	T_opr	20 to +75	20 to +75
Storage temperature	T_stg	55 to +125	55 to +125

Note: These are the allowable values up to T_a = 45. Derate by 8.3 mW/ above that temperature.

Description

The HA17741/PS is an internal phase compensation high-performance operational amplifier, that is appropriate for use in a wide range of applications in the test and control fields.
