Part Number: HA178L00P









Description: The HA178L00 series three-terminal fixed output voltage regulators. Can be used not only as stabilized...


Urgent Purchase

HA178L00P General Description


The HA178L00 series three-terminal fixed output voltage regulators. Can be used not only as stabilized power sources, but also as Zener diodes because of their small outline package.

HA178L00P Maximum Ratings

Item
Symbol
Rating
Unit
Note
Input voltage
VIN
35
V
Power dissipation
PT
800
mW
TO-92M*1
800
UPAK*2
Operating ambient temperature
Topr
20 to +75
°C
TO-92M
20 to +85
UPAK
Storage temperature
Tstg
55 to +150
°C
Note: 1. Ta 25°C, If Ta >25°C, derate by 6.4 mW/°C (See figure A)
          2. 15mm * 25mm* 0.7 mm alumina ceramic board, Ta 25°C (See figure B)

HA178L00P Features

·  Maximum output current: 150 mA (Tj= 25°C)
·  Large maximum power dissipation: 800 mW
·  Overcurrent protection
·  Temperature protection circuit

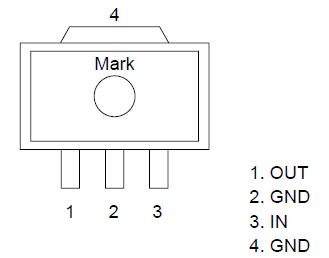

HA178L00P Connection Diagram

HA178L00P Connection Diagram
