Part Number: HA17902



MFG: HITACHI

Package Cooled: DIP



Description: The HA17902 is an internal phase compensation quad operational amplifier that operates on a singlevoltage power supply ...


Urgent Purchase

HA17902 General Description


The HA17902 is an internal phase compensation quad operational amplifier that operates on a singlevoltage power supply and is appropriate for use in a wide range of general-purpose control equipment.

HA17902 Maximum Ratings

Item Symbol HA17902/
P		 HA17902
PJ		 HA17902
FP		 HA17902
FPJ		 HA17902
FPK		 Unit
Power supply
voltage		 VCC 28 28 28 28 28 V
Sink current Io sink 50 50 50 50 50 mA
Allowable power
dissipation		 PT 625*1 625*1 625*2 625*2 625*2 mW
Common-mode
input voltage		 VCM 0.3 to
VCC		 0.3 to
VCC		 0.3 to
VCC		 0.3 to
VCC		 0.3 to
VCC		 V
Differential-mode
input voltage		 Vin(diff) ±VCC ±VCC ±VCC ±VCC ±VCC V
Operating
temperature		 Topr 20 to +75 40 to +85 20 to +75 40 to +85 40 to
+125		 °C
Storage
temperature		 Tstg 55 to
+125		 55 to
+125		 55 to
+125		 55 to
+125		 55 to
+125		 °C
Notes: 1. These are the allowable values up to Ta = 50°C. Derate by 8.3mW/°C above that temperature.
            2. See notes on SOP Package Usage in Reliability section.

HA17902 Features

·  Wide usable power-supply voltage range and single-voltage supply operation
·  Internal phase compensation
·  Wide common-mode voltage range and operation for inputs close to the 0 level

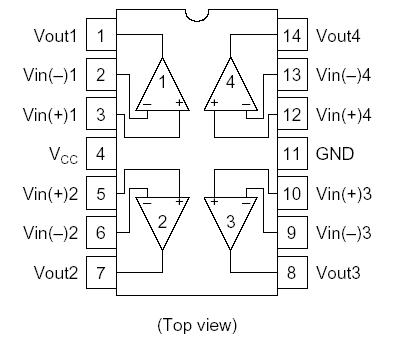

HA17902 Connection Diagram

HA17902 Connection Diagram

HA17902 datasheet

HA17902
PDF/DataSheet Download
