HA4314B

Features: • Pb-Free Plus Anneal Available (RoHS Compliant)• Low Power Dissipation. . . . . . . . . . . . . . . . . . . . 105mW• Symmetrical Slew Rates . . . . . . . . . . . . . . . . . . 1400V/s• 0.1dB Gain Flatness. . . . . . . . . . . . . . . . . . . . . . . 100MHz•...

product image

HA4314B Picture
See larger image
SeekIC No. : 004358324 Detail

HA4314B: Features: • Pb-Free Plus Anneal Available (RoHS Compliant)• Low Power Dissipation. . . . . . . . . . . . . . . . . . . . 105mW• Symmetrical Slew Rates . . . . . . . . . . . . . . ....

HA4314B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA4314B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Pb-Free Plus Anneal Available (RoHS Compliant)
• Low Power Dissipation. . . . . . . . . . . . . . . . . . . . 105mW
• Symmetrical Slew Rates . . . . . . . . . . . . . . . . . . 1400V/s
• 0.1dB Gain Flatness. . . . . . . . . . . . . . . . . . . . . . . 100MHz
• -3dB Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . .. 400MHz
• Off Isolation (100MHz) . . . . . . . . . . . . . . . . . . . . . . 70dB
• Crosstalk Rejection (30MHz) . . . . . . . . . . . . . . . . . . 80dB
• Differential Gain and Phase . . . . . . .0.01%/0.01 Degrees
• High ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . >2000V
• TTL Compatible Control Inputs
• Improved Replacement for GX4314 and GX4314L




Application

• Professional Video Switching and Routing
• HDTV
• Computer Graphics
• RF Switching and Routing
• PCM Data Routing




Pinout

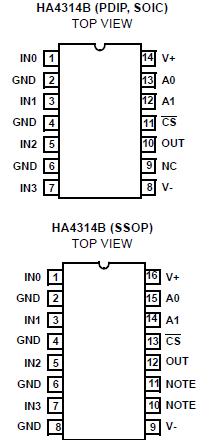

Connection Diagram




Specifications

Voltage Between V+ and V- . . . . . . . . . . . . . . . . . . . . . . . . . 12V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VSUPPLY
Digital Input Current (Note 2) . . . . . . . . . . . . . . . . . . . . . ±25mA
Analog Input Current (Note 2) . . . . . . . . . . . . . . . . . . . . . .±5mA
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7). .2000V




Description

The HA4314B is a very wide bandwidth 4 x 1 crosspoint switch ideal for professional video switching, HDTV,computer monitor routing, and other high performance applications. The circuit features very low power dissipation (105mW Enabled, 4mW Disabled), excellent differential gain and phase, and very high off isolation. When disabled, the output is switched to a high impedance state, making the HA4314B ideal for routing matrix equipment.

The HA4314B requires no external current source, and features fast switching and symmetric slew rates.For a 4 x 1 crosspoint with Tally outputs (channel indicators) or with synchronous control signals, please refer to the HA4404B and HA4344B data sheets, respectively.For audio channels requiring larger signal swings, please refer to the CD22M3494 (16 x 8) data sheet.
