General Description
HA7210 General Description
The HA7210 is a very low power crystal-controlled oscillators that can be externally programmed to operate between 10kHz and 10MHz. For normal operation it requires only the addition of a crystal. The part exhibits very high stability over a wide operating voltage and temperature range.
The HA7210 also features a disable mode that switches the output to a high impedance state. This feature is useful for minimizing power dissipation during standby and when multiple oscillator circuits are employed.
HA7210 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . .10V
Voltage (Any Pin) . . . . . .VSS -0.3V to VDD +0.3V
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . 4000V
Voltage (Any Pin) . . . . . .VSS -0.3V to VDD +0.3V
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . 4000V
HA7210 Features
Single Supply Operation at 32kHz . . . . . . . . . . 2V to 7V
• Operating Frequency Range . . . . . . . 10kHz to 10MHz
• Supply Current at 32kHz . . . . . . . . . . . . . . . . . . . 5A
• Supply Current at 1MHz . . . . . . . . . . . . . . . . . . 130A
• Drives 2 CMOS Loads
• Only Requires an External Crystal for Operation
• Operating Frequency Range . . . . . . . 10kHz to 10MHz
• Supply Current at 32kHz . . . . . . . . . . . . . . . . . . . 5A
• Supply Current at 1MHz . . . . . . . . . . . . . . . . . . 130A
• Drives 2 CMOS Loads
• Only Requires an External Crystal for Operation
HA7210 Typical Application
• Battery Powered Circuits
• Remote Metering
• Embedded Microprocessors
• Palm Top/Notebook PC
• Related Literature
- AN9334, Improving HA7210 Start-Up Time
• Remote Metering
• Embedded Microprocessors
• Palm Top/Notebook PC
• Related Literature
- AN9334, Improving HA7210 Start-Up Time

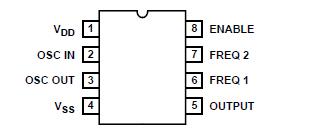

HA7210 Connection Diagram
HA7210
PDF/DataSheet Download
- Datasheet: HA7210
- File Size: 130779 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
