Part Number: HC55150
Description: The UniSLIC14 is a family of Ultra Low Power SLICs. The feature set and common pinouts of the UniSLIC14 family position...
- Table of contents:
HC55150
-
Suppliers
DataSheet
General Description
HC55150 General Description
The UniSLIC14 is a family of Ultra Low Power SLICs. The feature set and common pinouts of the UniSLIC14 family positions it as a universal solution for: Plain Old Telephone Service (POTS), PBX, Central Office, Loop Carrier, Fiber in the Loop, ISDN-TA and NT1+, Pairgain and Wireless Local Loop.
The UniSLIC14 family achieves its ultra low power operation through: Its automatic single and dual battery selection (based on line length) and battery tracking anti clipping to ensure the maximum loop coverage on the lowest battery voltage. This architecture is ideal for power critical applications such as ISDN NT1+, Pairgain and Wireless local loop products.
The UniSLIC14 family has many user programmable features. This family of SLICs delivers a low noise, low component count solution for Central Office and Loop Carrier universal voice grade designs. The product family integrates advanced pulse metering, test and signaling capabilities, and zero crossing ring control.
The UniSLIC14 family is designed in the Intersil "Latch" free Bonded Wafer process. This process dielectrically isolates the active circuitry to eliminate any leakage paths as found in our competition's JI process. This makes the UniSLIC14 family compliant with "hot plug" requirements and operation in harsh outdoor environments.
HC55150 Maximum Ratings
Temperature, Humidity
Storage Temperature Range . . . . . . . . . . . . . . . . -65 to 150
Operating Temperature Range. . . . . . . . . . . . . . . -40 to 110
Operating Junction Temperature Range. . . . . . . . -40 to 150
Power Supply (-40oC TA 85oC)
Supply Voltage VCC to GND . . . . . . . . . . . . . . . . . . . -0.4V to 7V
Supply Voltage VBL to GND . . . . . . . . . . . . . . . . . .-VBH to 0.4V
Supply Voltage VBH to GND, Continuous. . . . . . . . -75V to 0.4V
Supply Voltage VBH to GND, 10ms . . . . . . . . . . . .. -80V to 0.4V
Relay Driver
Ring Relay Supply Voltage . . . . . . . . . . . . . . . . . . .. . . 0V to 14V
Ring Relay Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Digital Inputs, Outputs (C1, C2, C3, C4, C5, SHD, GKD_LVM)
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .. . -0.4V to VCC
Output Voltage (SHD, GKD_LVM Not Active). . . . . . -0.4V to VCC
Output Current (SHD, GKD_LVM) . . . . . . . . . . . . . . . . . . . . 5mA
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500V
Gate Count. . . . . . . . . . . . . . . . . . . .543 Transistors, 51 Diodes
Tipx and Ringx Terminals (-40oC TA 85)
Tipx or Ringx Current . . . . . . . . . . . . . . . .. . . -100mA to 100mA
Storage Temperature Range . . . . . . . . . . . . . . . . -65 to 150
Operating Temperature Range. . . . . . . . . . . . . . . -40 to 110
Operating Junction Temperature Range. . . . . . . . -40 to 150
Power Supply (-40oC TA 85oC)
Supply Voltage VCC to GND . . . . . . . . . . . . . . . . . . . -0.4V to 7V
Supply Voltage VBL to GND . . . . . . . . . . . . . . . . . .-VBH to 0.4V
Supply Voltage VBH to GND, Continuous. . . . . . . . -75V to 0.4V
Supply Voltage VBH to GND, 10ms . . . . . . . . . . . .. -80V to 0.4V
Relay Driver
Ring Relay Supply Voltage . . . . . . . . . . . . . . . . . . .. . . 0V to 14V
Ring Relay Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Digital Inputs, Outputs (C1, C2, C3, C4, C5, SHD, GKD_LVM)
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .. . -0.4V to VCC
Output Voltage (SHD, GKD_LVM Not Active). . . . . . -0.4V to VCC
Output Current (SHD, GKD_LVM) . . . . . . . . . . . . . . . . . . . . 5mA
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500V
Gate Count. . . . . . . . . . . . . . . . . . . .543 Transistors, 51 Diodes
Tipx and Ringx Terminals (-40oC TA 85)
Tipx or Ringx Current . . . . . . . . . . . . . . . .. . . -100mA to 100mA
HC55150 Features
• Ultra Low Active Power (OHT) < 60mW
• Single/Dual Battery Operation
• Automatic Silent Battery Selection
• Power Management/Shutdown
• Battery Tracking Anti Clipping
• Single 5V Supply with 3V Compatible Logic
• Zero Crossing Ring Control
- Zero Voltage On/Zero Current Off
• Tip/Ring Disconnect
• Pulse Metering Capability
• 4 Wire Loopback
• Programmable Current Feed
• Programmable Resistive Feed
• Programmable Loop Detect Threshold
• Programmable On-Hook and Off-Hook Overheads
• Programmable Overhead for Pulse Metering
• Programmable Polarity Reversal Time
• Selectable Transmit Gain 0dB/-6dB
• 2 Wire Impedance Set by Single Network
• Loop and Ground Key Detectors
• On-Hook Transmission
• Common Pinout
• HC55121
- Polarity Reversal
• HC55130
- -63dB Longitudinal Balance
• HC55140
- Polarity Reversal
- Ground Start
- Line Voltage Measurement
- 2 Wire Loopback
- -63dB Longitudinal Balance
• HC55142
- Polarity Reversal
- Ground Start
- Line Voltage Measurement
- 2.2VRMS Pulse Metering
- 2 Wire Loopback
• HC55150
- Polarity Reversal
- Line Voltage Measurement
- 2.2VRMS Pulse Metering
- 2 Wire Loopback
• Single/Dual Battery Operation
• Automatic Silent Battery Selection
• Power Management/Shutdown
• Battery Tracking Anti Clipping
• Single 5V Supply with 3V Compatible Logic
• Zero Crossing Ring Control
- Zero Voltage On/Zero Current Off
• Tip/Ring Disconnect
• Pulse Metering Capability
• 4 Wire Loopback
• Programmable Current Feed
• Programmable Resistive Feed
• Programmable Loop Detect Threshold
• Programmable On-Hook and Off-Hook Overheads
• Programmable Overhead for Pulse Metering
• Programmable Polarity Reversal Time
• Selectable Transmit Gain 0dB/-6dB
• 2 Wire Impedance Set by Single Network
• Loop and Ground Key Detectors
• On-Hook Transmission
• Common Pinout
• HC55121
- Polarity Reversal
• HC55130
- -63dB Longitudinal Balance
• HC55140
- Polarity Reversal
- Ground Start
- Line Voltage Measurement
- 2 Wire Loopback
- -63dB Longitudinal Balance
• HC55142
- Polarity Reversal
- Ground Start
- Line Voltage Measurement
- 2.2VRMS Pulse Metering
- 2 Wire Loopback
• HC55150
- Polarity Reversal
- Line Voltage Measurement
- 2.2VRMS Pulse Metering
- 2 Wire Loopback
HC55150 Typical Application
• Related Literature
- AN9871, User's Guide for UniSLIC14 Eval Board
- AN9871, User's Guide for UniSLIC14 Eval Board

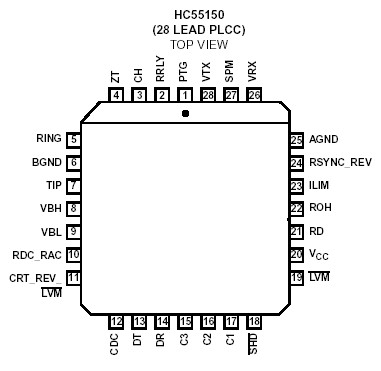

HC55150 Connection Diagram
HC55150
PDF/DataSheet Download
- Datasheet: HC55150
- File Size: 392056 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
