HC55171
Suppliers
DataSheet
General Description

Purchase HC55171, In-stock HC55171 From SeekIC.

MFG:PLCC Package Cooled:HARRIS D/C:04+

HC5 Series Datasheet download

Five Points

Part Number: HC55171

MFG: PLCC

Package Cooled: HARRIS

D/C: 04+

Description: The HC55171 is backward compatible to the HC5517 with the added capability of driving 5 REN loads. The HC55171 is ideal...

HC55171 General Description

The HC55171 is backward compatible to the HC5517 with the added capability of driving 5 REN loads. The HC55171 is ideal for any modem or remote networking access application that requires plain old telephone service POTS, capability. The linear amplifier design allows a choice of Sinusoidal, Square wave or Trapezoidal ringing. The voltage feed architecture eliminates the need for a high current gain node achieving improved system noise immunity, an advantage in highly integrated systems.

The device is manufactured in a high voltage Dielectric Isolation (DI) process with an operating voltage range from -16V, for off-hook operation and -80V for ring signal injection.

The DI process provides substrate latch up immunity, resulting in a robust system design.

HC55171 Maximum Ratings

Maximum Supply Voltages
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.5V to +7V
VCC - VBAT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90V
Relay Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.5V to +15V

HC55171 Features

• 5 REN Thru SLIC Ringing Capability to 75VPEAK
• Trapezoid, Square and Sinusoid Ringing Capability
• Bellcore Compliant Ringing Voltage Levels
• Lowest Component Count Trapezoidal Solution
• Single Additional +5V Supply
• Pin For Pin Compatible With HC5517
• DI Provides Latch-Up Immunity

HC55171 Typical Application

• ISDN Internal/External Modems
• ISDN Terminal Adapters/Routers
• Wireless Local Loop Subscriber Terminals
• Cable Telephony Set-Top Boxes
• Digital Added Main Line
• Integrated LAN/PBX
• Related Literature
       - AN9606, Operation of the HC5517/171 Evaluation Board
       - AN9607, Impedance Matching Design Equations
       - AN9628, AC Voltage Gain
       - AN9608, Implementing Pulse Metering
       - AN9636, Implementing an Analog Port for ISDN Using the HC5517
       - AN549, The HC-5502X/4X Telephone Subscriber Line Interface Circuits (SLIC)

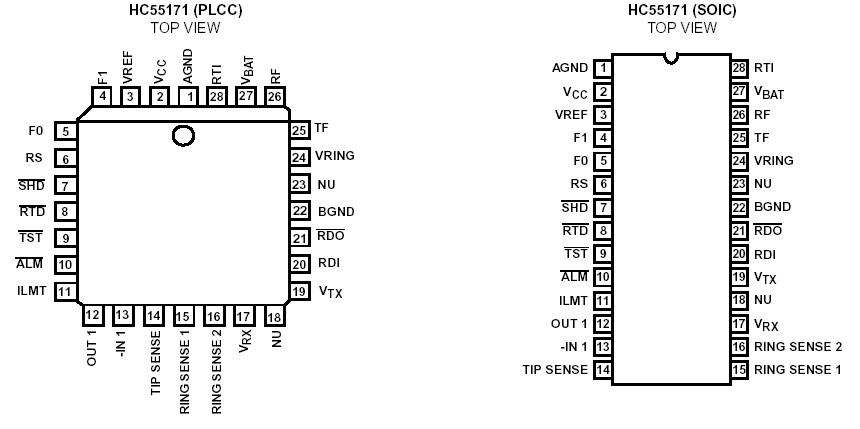

HC55171 Connection Diagram
