Part Number: HCF4010B









Description: The HCC4009UB/4010B (extended temperature range) and the HCF4009UB/4010B (intermediate temperature range) are monolithi...


Urgent Purchase

HCF4010B General Description


The HCC4009UB/4010B (extended temperature range) and the HCF4009UB/4010B (intermediate temperature range) are monolithic integrated circuits available in 16-lead dual in line plastic or ceramic packages and plastic micropackage.

The HCC/HCF4009UB/4010B are inverting and non-inverting Hex Buffer/Converters, respectively. Both devices can be used as CMOS to TTL or DTL logic-level converters, as current "sink" or "source" drivers or as multiplexer (1 to 6).

4049UB and 4050B are prefered replacements for 4009UB and 4010B, respectively, in buffer applications.

HCF4010B Maximum Ratings

Symbol Parameter Value Unit
VDD * Supply Voltage: HCC Types -0.5 to +20 V
HCF Types -0.5 to +18 V
Vi Input Voltage -0.5 to VDD + 0.5 V
II DC Input Current (any one input) ± 10 mA
Ptot Total Power Dissipation (per package) 200 mW
Dissipation per Output Trans
for Top = Full Package Temperature Range 100 mW
Top Operating Temperature: HCC Types -55 to +125
Types -40 to +85
Tstg Storage Temperature -65 to +150

Stressesabove those listedunder "Absolute Maximum Ratings"may cause permanent damage to thedevice. This isa stress ratingonly and functional operation of the device at these or any other conditions above those indicated in theoperational sections of this specification is not implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltage values are referred to VSS pin voltage.

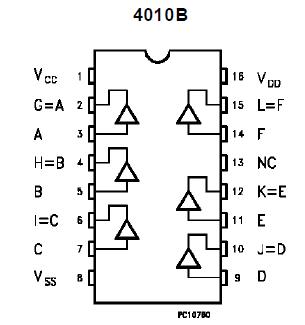

HCF4010B Connection Diagram

HCF4010B Connection Diagram

HCF4010B datasheet

HCF4010B
PDF/DataSheet Download

  • Datasheet: HCF4010B
  • File Size: 309565 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
