Part Number: HCF4024BEY



MFG: ST

Package Cooled: DIP

D/C: 09

Description: The HCF4024B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and...


Urgent Purchase

HCF4024BEY General Description


The HCF4024B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF4024B is a ripple carry binary counter. All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros stage. Schmitt trigger action on the input pulse line permits unlimited clock rise and fall times. All inputs and outputs are buffered

HCF4024BEY Maximum Ratings

Symbol
Rating
Value
Unit
VDD
 Supply Voltage
0.5 to + 22
V
Vi
 DC Input Voltage
0.5 to VDD + 0.5
V
II
 DC Input Current
± 10
mA
PD

Power Dissipation per package

Power Dissipation per Output Transistor
200

100
mW

mW
Top
 Operating Temperature
-55 to +125
°C
Tstg
 Storage Temperature
65 to + 150
°C
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.
All voltage values are referred to VSS pin voltage.

HCF4024BEY Features

·MEDIUM SPEED OPERATION : tPD = 80ns (Typ.) at VDD = 10V
·FULLY STATIC OPERATION COMMON RESET
·BUFFERED INPUTS AND OUTPUTS
·STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
·QUIESCENT CURRENT SPECIFIED UP TO 20V
·5V, 10V AND 15V PARAMETRIC RATINGS
·INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C
·100% TESTED FOR QUIESCENT CURRENT
·MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES"

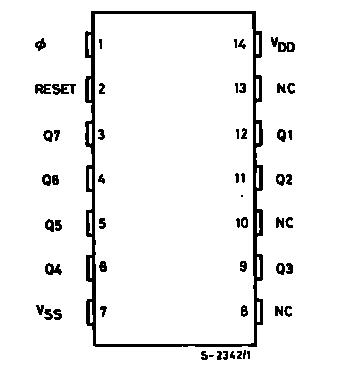

HCF4024BEY Connection Diagram

HCF4024BEY Connection Diagram
