Part Number: HCF4560BM1_1053580









Description: The HCC4560B and HCF4560B are monolithic in-tegrated circuits, available in 16-lead dual-in-line plast...


Urgent Purchase

HCF4560BM1_1053580 General Description


The HCC4560B and HCF4560B are monolithic in-tegrated circuits, available in 16-lead dual-in-line plastic or ceramic packages and plastic micro pack-ages.

The HCC4560B and HCF4560B add two 4-bit num-bers in NBCD (natural binary coded decimal) for-mat, resulting in sum and carry outputs in NBCD code.

All inputs and outputs are active high. The carry input for the least significant digit is connected to VSS for no carry in.

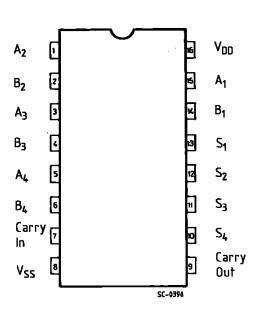

HCF4560BM1_1053580 Connection Diagram

HCF4560BM1_1053580 Connection Diagram

HCF4560BM1_1053580 datasheet
