HCPL-050L-060

Features:

• Low power consumption
• High speed: 1 Mb/s
• LVTTL/LVCMOS compatible
• Available in 8-pin DIP, SO-8
• Open collector output
• Guaranteed performance from temperature: 0°C to +70°C
• Safety approval, UL, CSA, IEC/EN/DIN EN 60747-5-2


Application

• High voltage insulation
• Video signal isolation
• Power translator isolation in motor drives
• Line receivers
• Feedback element in switched mode power supplies
• High speed logic ground isolation LVTTL/LVCMOS
• Replaces pulse transformers
• Replaces slow phototransistor isolators
• Analog signal ground isolation

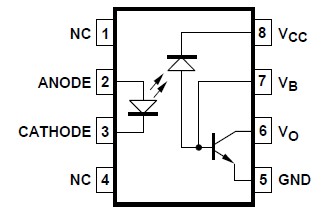

Pinout




Specifications

Parameter	Symbol	Minimum	Maximum	Units	Note
Storage Temperature	TS	-55	125	°C
Operating Temperature	TA	-55	100	°C
Average Forward Input Current	I F(AVG)	-55	85	mA
Peak Transient Input Current (50% duty cycle, 1 ms pulse width) 50 mA (50% duty cycle, 1 ms pulse width)	I F(PEAK)		50	mA
			40
Peak Transient Input Current ( 1 ms Pulse Width, 300 pps)	IF(tran)		1.0	A
Reverse Input Voltage(Pin 3-2)	VR		5	V
Input Power Dissipation	Pin		45
Average Output Current(Pin 6)	IO(AVG)		4	mA
Peak Output Current	IO(PEAK)		8
Emitter-Base Reverse Voltage	VEBR		16
Supply Voltage(Pin 8-5)	VCC		5	V
Output Voltage (Pin 6-5)	VE	-0.5	7	V
Base Current	VO	-0.5	7	V
Output Power Dissipation	PT		5	mW
Lead Solder Temperature (Through Hole Parts Only) 1.6 mm below seating plane, 10 sec. up to seating plane, 10 seconds	TLS		260 260
Reflow Temperature Profile	TRP			See Package Outline Drawings section

Description

These HCPL-050L-060 diode-transistor optocouplers use an insulating layer between a LED and an integrated photodetector to provide electrical insulation between input and output. Separate connections for the photodiode bias and outputtransistor collector increase the speed up to a hundred times that of a conventional phototransistor coupler by reducing the basecollector capacitance.

These HCPL-050L-060 optocouplers are available  in an 8-pin DIP and in an industry standard SO-8 package. The following is a cross reference table listing the 8-pin DIP part number and the electrically equivalent SO-8 part number. The SO-8 does not require "through holes" in a PCB. This package of HCPL-050L-060 occupies approximately one-third the footprint area of the
