Available in SO-8 package, the HCPL-0708 optocoupler utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption. Basic building blocks of the HCPLAgilent 0708 are a high speed LED and a CMOS detector IC. The detector incorporates an integrated photodiode, a high-speed transimpedance amplifier, and a voltage comparator with an output driver.
HCPL-0708 Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Units |
Figure |
| Storage Temperature |
TS |
-55 |
125 |
||
| Ambient Operating Temperature[1] |
TA |
-40 |
+100 |
||
| Supply Voltage |
VDD |
0 |
6 |
Volts |
|
| Output Voltage |
VO |
-0.5 |
VDD2 +0.5 |
Volts |
|
| Average Output Current |
IO |
2 |
mA |
||
| Average Forward Input Current |
IF |
20 |
mA |
||
| Lead Solder Temperature | 260°C for 10 sec., 1.6 mm below seating plane | ||||
| Solder Reflow Temperature Profile | See Package Outline Drawings section | ||||
HCPL-0708 Features
• +5 V CMOS compatibility
• 15 ns typical pulse width distortion
• 30 ns max. pulse width distortion
• 40 ns max. propagation delay skew
• High speed: 15 MBd
• 60 ns max. propagation delay
• 10 kV/s minimum common mode rejection
• 40 to 100°C temperature range
• Safety and regulatory approvals pending
UL recognized 2500 V rms for 1 min. per UL 1577 for HCPL-0708
CSA component acceptance Notice #5
VDE 0884 (TUV) approved for HCPL-0708 Option 060
• 15 ns typical pulse width distortion
• 30 ns max. pulse width distortion
• 40 ns max. propagation delay skew
• High speed: 15 MBd
• 60 ns max. propagation delay
• 10 kV/s minimum common mode rejection
• 40 to 100°C temperature range
• Safety and regulatory approvals pending
UL recognized 2500 V rms for 1 min. per UL 1577 for HCPL-0708
CSA component acceptance Notice #5
VDE 0884 (TUV) approved for HCPL-0708 Option 060
HCPL-0708 Typical Application
• Scan drive in PDP
• Digital field bus isolation: DeviceNet, SDS, Profibus
• Multiplexed data transmission
• Computer peripheral interface
• Microprocessor system interface
• DC/DC converter
• Digital field bus isolation: DeviceNet, SDS, Profibus
• Multiplexed data transmission
• Computer peripheral interface
• Microprocessor system interface
• DC/DC converter

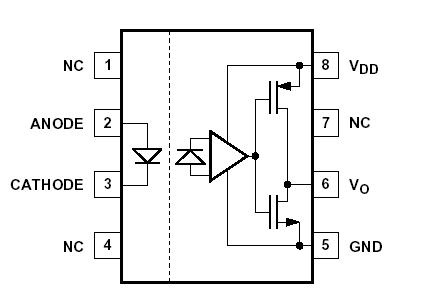

HCPL-0708 Connection Diagram
