Features:

• 12-bit Linearity
• 700 ns Conversion Time (Pre-Trigger Mode 2)
• 5 Conversion Modes for Resolution/Speed Trade-Off; 12-bit Effective Resolution with 18 ms Signal Delay (14-bit with 94 ms)
• Fast 3 ms Over-Range Detection
• Serial I/O (SPI®, QSPI® and Microwire® Compatible)
• ± 200 mV Input Range with Single 5 V Supply
• 1% Internal Reference
• Offset Calibration
• -40°C to +85°C Operating Temperature Range
• 15 kV/ms Isolation Transient Immunity
• Regulatory Approvals; UL, CSA, VDE

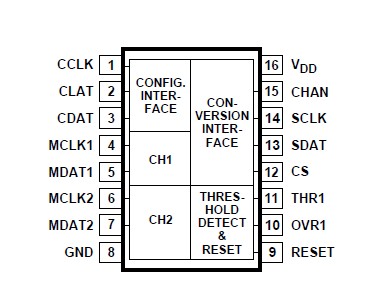

Pinout

Specifications

Parameter	Symbol	Min.	Max.	Units	Note
Storage Temperature	TS	-55	125	°C
Ambient Operating Temperature	TA	-40	+85	°C
Supply Voltages	VDD1, VDD2	0	5.5	Volts
Steady-State Input Voltage	VIN+, VIN-	-2.0	VDD1 + 0.5	Volts
Two Second Transient Input Voltage	VIN+, VIN-	-6.0	VDD1 + 0.5	Volts
Output Voltages	MCLK, MDAT	-0.5	VDD2 + 0.5	Volts
Lead Solder Temperature	260°C for 10 sec., 1.6 mm below seating plane				17
Solder Reflow Temperature Profile	See Maximum Solder Reflow Thermal Profile section
