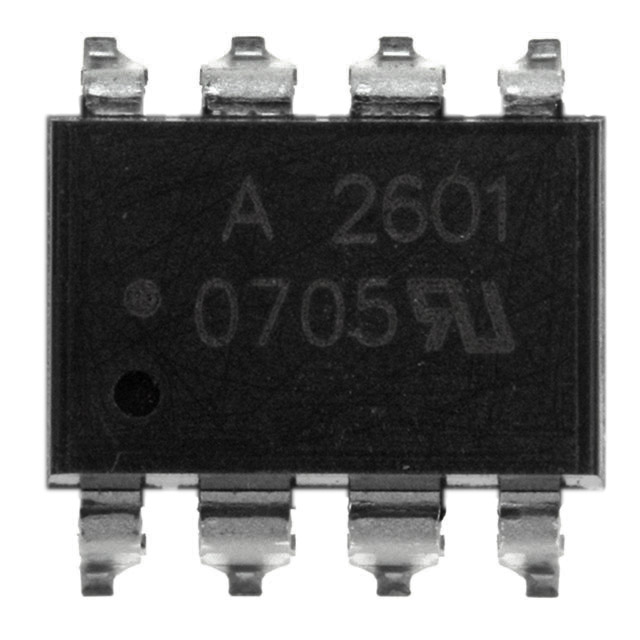

HCPL2601S

HCP Series Datasheet download

Five Points

Part Number: HCPL2601S

Category: Isolators

MFG: Fairchild Optoelectronics Group





Descriptions: OPTOCOUPLER LOG-OUT 1CH 8-SMD

Price Break

1000

Unit Price

.71913

Extended Price

719.13

(All prices are in USD) Prices for reference only
Urgent Purchase

HCPL2601S General Description

OPTOCOUPLER LOG-OUT 1CH 8-SMD

HCPL2601S Parameters

Technical/Catalog InformationHCPL2601S
VendorFairchild Optoelectronics Group
CategoryIsolators
Mounting TypeSurface Mount
Package / Case8-SMD
Isolation Voltage2500Vrms
Configuration1, One Direction
Input TypeDC
Output TypeOpen Collector
Data Rate10Mbs
Current - Output/Channel50mA
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names HCPL2601S
