HCS05D

Features: • 3 Micron Radiation Hardened SOS CMOS• Total Dose 200K RAD (Si)• SEP Effective LET No Upsets: >100 MEV-cm2/mg• Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)• Dose Rate Survivability: >1 x 1012 RAD (Si)/s• Dose Rate Upset &...

product image

HCS05D Picture
See larger image
SeekIC No. : 004359804 Detail

HCS05D: Features: • 3 Micron Radiation Hardened SOS CMOS• Total Dose 200K RAD (Si)• SEP Effective LET No Upsets: >100 MEV-cm2/mg• Single Event Upset (SEU) Immunity < 2 x 10-9 E...

HCS05D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCS05D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3 Micron Radiation Hardened SOS CMOS
• Total Dose 200K RAD (Si)
• SEP Effective LET No Upsets: >100 MEV-cm2/mg
• Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)
• Dose Rate Survivability: >1 x 1012 RAD (Si)/s
• Dose Rate Upset >1010 RAD (SI)/s 20ns Pulse
• Cosmic Ray Upset Immunity < 2 x 10-9 Errors/Gate Day (Typ)
• Latch-Up Free Under Any Conditions
• Military Temperature Range: -55oC to +125oC
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• Input Logic Levels
- VIL = 30% of VCC Max
- VIH = 70% of VCC Min
• Input Current Levels Ii 5µA at VOL, VOH


Pinout

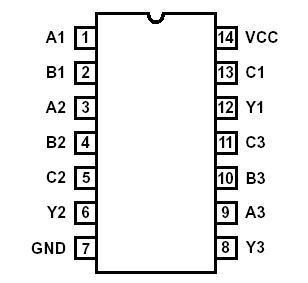

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +7.0V
Input Voltage Range, All Inputs . . . . . . . . . . .  .-0.5V to VCC +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . . . . .. . . .±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . . . . .±25mA
(All Voltage Reference to the VSS Terminal)
Storage Temperature Range (TSTG) . . . . . . . . . . . ..-65to +150
Lead Temperature (Soldering 10sec) . . . . . . . . . . . . .. . . . . +265
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . . . . +175
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The Intersil HCS10MS is a Radiation Hardened Triple 3-Input NAND Gate. A high on all inputs forces the output to a Low state. The HCS10MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family. The HCS10MS is supplied in a 14 lead Ceramic flatpack (K suffix) or a SBDIP Package (D suffix).
