HCS241MS

Features:

• 3 Micron Radiation Hardened SOS CMOS
• Total Dose 200K RAD (Si)
• SEP Effective LET No Upsets: >100 MEV-cm²/mg
• Single Event Upset (SEU) Immunity < 2 x 10^-9 Errors/ Bit-Day (Typ)
• Dose Rate Survivability: >1 x 10¹² RAD (Si)/s
• Dose Rate Upset >1010 RAD (Si)/Sec. 20ns Pulse
• Latch Up Free Under Any Conditions
• Military Temperature Range: -55 to +125
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• Input Logic Levels
- VIL = 30% VCC Max
- VIH = 70% VCC Min
• Input Compatibility Levels Ii 5µA at VOL, VOH

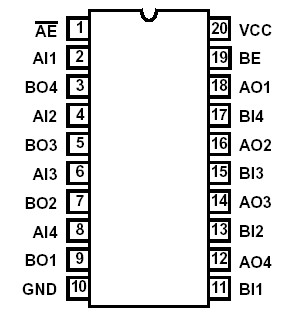

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . .. . . . . . . -0.5V to +7.0V
Input Voltage Range, All Inputs . . . . . . . . . . . .-0.5V to VCC +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . . . . . . . .±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . .  . .±35mA
(All Voltage Reference to the VSS Terminal)
Storage Temperature Range (TSTG) . . . . . . . . . . . -65 to +150
Lead Temperature (Soldering 10 sec) . . . . . . . . . . . . .  . . . +265
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . .. . +175
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . Class 1


Description

The Intersil HCS241MS is a Radiation Hardened inverting octal three-state buffer/line driver with two output enables, one active low, and one active high.

The HCS241MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family.

The HCS241MS is supplied in a 20 lead ceramic flatpack (K suffix) or a SBDIP package (D suffix).
