HD151011

Features: · High speed operation tpd (CLK or CLK to Q) = 35 ns (typ)· High output current Fanout of 10 LS TTL Loads· Wide operating voltage Vcc = 2 to 6 V· Low supply current (Ta = 25°C) Icc (Static) = 4 mA (max)PinoutSpecifications Item Symbol Ratings Unit Supply voltage VC...

product image

HD151011 Picture
See larger image
SeekIC No. : 004360013 Detail

HD151011: Features: · High speed operation tpd (CLK or CLK to Q) = 35 ns (typ)· High output current Fanout of 10 LS TTL Loads· Wide operating voltage Vcc = 2 to 6 V· Low supply current (Ta = 25°C) Icc (Static...

HD151011 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD151011
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  High speed operation tpd (CLK or CLK to Q) = 35 ns (typ)
·  High output current Fanout of 10 LS TTL Loads
·  Wide operating voltage Vcc = 2 to 6 V
·  Low supply current (Ta = 25°C) Icc (Static) = 4 mA (max)


Pinout

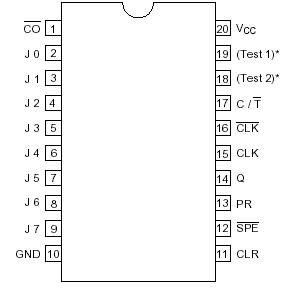

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Supply voltage
VCC
0.5 to 7.0
V
Input / output voltage
VIN/VOUT
0.5 to VCC +0.5
V
VCC, GND current
ICC,IGND
±50
mA
Output current / pin
IOUT
±25
mA
Power dissipation
PT
757
mW
Storage temperature
Tstg
65 to 150
°C
Input diode current
llk
±20
mA
Output diode current
lok
±20
mA
Notes: 1. The absolute maximum ratings are values which must not individually be exceeded, and
furthermore, no two of which may be realized at the same time.
2. All voltage values except for differential input voltage are with respect to network ground terminal.


Description

The HD151011 has BCD decimal two digits down counter and D-type Flip Flop. The HD151011 counter can set up to max 99 counts and synchronous preset (SPE) input can preset the data. When the count value is 0, the next clock pulse presets the data to invert the output. D-type Flip Flop takes the counter output as clock pulse, whose data is transferred to output at the rise edge. It is applied to generate AC signal for STN type liquid crystal and general-use divider.
