Part Number: HD29051



MFG: HIT







Urgent Purchase

HD29051 Maximum Ratings

Item Symbol Ratings Unit
Supply Voltage   *1 VCC 7 V
Input Voltage A , B   *3 VIN ±25 V
Differential Input Voltage   *2
                                           *3		 VID ±25 V
Output Current        *3 IO 50 mA
Enable Input Voltage VIE 5.5 V
Input Voltage           *4 VIN 5.5 V
Output Applied Voltage       *5
                                            *4		 VO 1.0 to 7.0 V
Operating Temperature Range Topr 0 to 70 °C
Storage Temperature Range Tstg 65 to 150 °C

HD29051 Features

Driver
` Built in current restriction when short circuit
` Power up / down protection.
` High output current    IOH = 40 mA
                                     IOL = 40 mA

Receiver
` Input hysteresis (Typ. 50 mV)
` In phase input voltage ±200 mV of input sensitivity in the range 7 to +12 V.

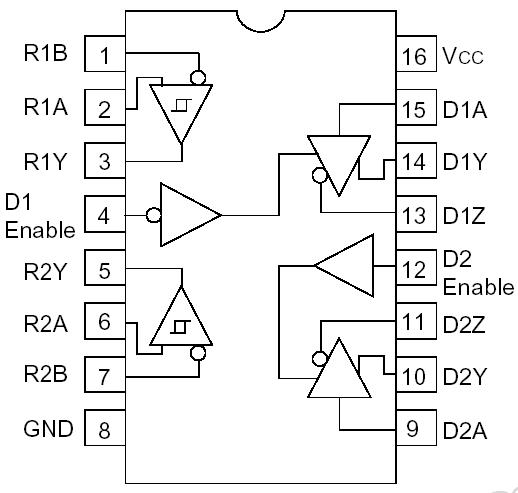

HD29051 Connection Diagram

HD29051 Connection Diagram

HD29051 datasheet

HD29051
PDF/DataSheet Download
