Part Number: HD29468
MFG: HIT
Description: The HD29468 features line drivers and receivers for unbalanced transmissions, which meet the specs of IBM 360 and 370. ...
- Table of contents:
HD29468
-
Suppliers
DataSheet
General Description
HD29468 General Description
The HD29468 features line drivers and receivers for unbalanced transmissions, which meet the specs of IBM 360 and 370. This device has three drivers and receivers in one package. Input of driver and output of receiver are compatible with low power schottky TTL circuit and operates from a single 5 V power supply. The driver has two types of enable inputs. Sprius noise can be prevented by grounding either input when power supply is throw or cut off. The outputs are protected from short circuit and the wired logic is available due to emitter follower from for party line data bus applications.
The device operates at high speed. Low to high level and high to low level propagation delay times defference are 10 ns max.
HD29468 Maximum Ratings
| Item | Symbol | Ratings | Unit |
| Supply Voltage | VCC | +7 | V |
| Driver Input Voltage | VID | 0.5 to +7 | V |
| Driver Output Voltage | VOD | 0.5 to +7 | V |
| Receiver Input Voltage | VIR | 0.5 to +7 | V |
| Power Dissipation (Ta = 25 °C) | DP | 1000 | mW |
| FP | 785 | mW | |
| Operating Temperature | Ta | 0 to +75 | °C |
| Storage Temperature | Tstg | 65 to +150 | °C |

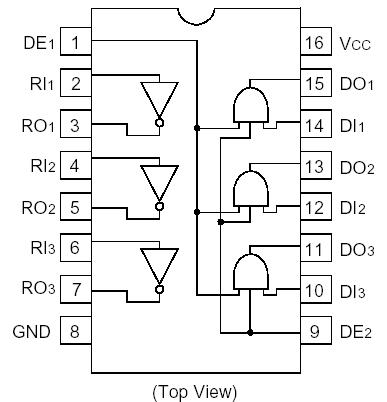

HD29468 Connection Diagram
HD29468
PDF/DataSheet Download
- Datasheet: HD29468
- File Size: 26132 KB
- Manufacturer: ETC [ETC]
- Click here to Download
