Features: · 512-digit×4-bit RAM
· 54 I/O pins One input-only pin 53 input/output pins: 8 pins are intermediate-voltage NMOS open drain with high-current pins (15mA, max.)
· On-chip A/D converter (8-bit ´ 12-channel) Low power voltage 2.7 V to 6.0 V
· Three timers One event counter input One timer output One input capture timer
· Eight-bit clock-synchronous serial interface (1 channel)
· Alarm output
· Built-in oscillators Ceramic oscillator or crystal External clock drive is also possible Subclock: 32.768-kHz crystal oscillator
· Seven interrupt sources Two by external sources Three by timers One by A/D converter One by serial interface
· Four low-power dissipation modes Standby mode Stop mode Watch mode Subactive mode

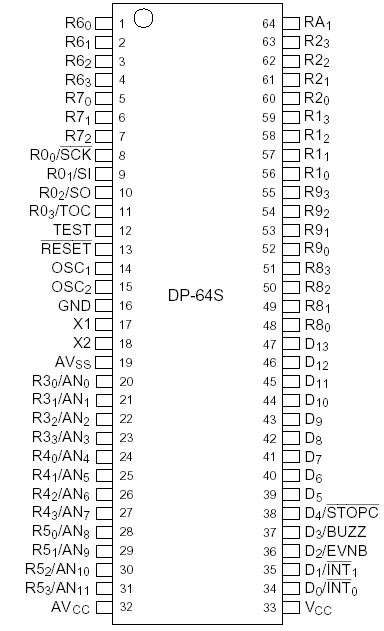

· Instruction cycle time 0.47 ms (fOSC = 8.5 MHz, 1/4 division ratio): HD40A4364, HD40A4368, HD40A43612, HD40A4369, HD407A4369 0.8 ms (fOSC = 5 MHz, 1/4 division ratio): HD404364, HD404368, HD4043612, HD404369 1/4, 1/8, 1/16, 1/32 system clock division ratio can be selectePinoutSpecifications
Item |
Symbol |
Ratings |
Unit |
Notes |
Supply voltage |
VCC |
0.3 to +7.0 |
V |
|
Programming voltage |
VPP |
0.3 to +14.0 |
V |
1 |
Pin voltage |
VT |
0.3 to VCC + 0.3 |
V |
2 |
0.3 to +15.0 |
V |
3 |
Total permissible input current |
Io |
105 |
mA |
4 |
Total permissible output current |
-Io |
50 |
mA |
5 |
Maximum input current |
Io |
4 |
mA |
6, 7 |
30 |
mA |
6, 8 |
Maximum output current |
Io |
4 |
mA |
7, 9 |
Operating temperature |
Topr |
20 to +75 |
°C |
|
Storage temperature |
Tstg |
55 to +125 |
°C |
|
DescriptionThe HD404369 Series is a 4-bit HMCS400-Series microcomputer designed to increase program productivity and also incorporate large-capacity memory. Each microcomputer has an A/D converter, input capture timer, 32-kHz oscillator for clock, and four low-power dissipation modes.
The HD404369 Series includes nine chips: the HD404364, HD40A4364 with 4-kword ROM; the HD404368, HD40A4368 with 8-kword ROM; the HD4043612, HD40A43612 with 12-kword ROM; the HD404369, HD40A4369 with 16-kword ROM; the HD407A4369 with 16-kword PROM.
The HD404369 are high speed versions (minimum instruction cycle time: 0.47 ms).The HD407A4369 is a PROM version (ZTA
TM microcomputer). A program can be written to the PROM by a PROM writer, which can dramatically shorten system development periods and smooth the process from debugging to mass production. (The ZTA
TMversion is 27256-compatible.)
