Package Cooled:HIT D/C:QFP
Package Cooled: HIT
D/C: QFP
Description: The HD404618 Series is designed with the powerful and efficient architecture of the HMCS400 family. The MCU incorporate...
| Item | Symbol | Ratings | Unit | Notes |
| Supply voltage | VCC | 0.3 to +7.0 | V | |
| Programming voltage | VPP | 0.3 to +14.0 | V | 1 |
| Pin voltage | VT | 0.3 to VCC + 0.3 | V | |
| Total permissible input current | Io | 100 | mA | 2 |
| Total permissible output current | -Io | 50 | mA | 3 |
| Maximum input current | Io | 4 | mA | 4,5 |
| 30 | mA | 4,6 | ||
| Maximum output current | Io | 4 | mA | 7,8 |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +125 | °C |
· 2048-word×10-bit ROM (HD404612)
· 4096-word×10-bit ROM (HD404614)
· 6144-word×10-bit ROM (HD404616)
· 8192-word ×10-bit ROM (HD404618, HD4074618)
· 1184-digit×4-bit RAM
· 30 I/O pins 10 high-current output pins CMOS I/O pin circuit configuration Input/output pull-up MOS can be selected by software
· On-chip DTMF generator
· LCD controller/driver (32 segments ´ 4 commons)
· Three timer/counters
· Clock-synchronous 8-bit serial interface
· Six interrupt sources Two by external sources Four by internal sources
· Subroutine stack up to 16 levels, including interrupts
· Instruction cycle time 10 ms (fOSC = 400 kHz) 5 ms (fOSC = 800 kHz)
· Four low-power dissipation modes Stop mode Standby mode Watch mode Subactive mode
· Built-in oscillator Crystal or ceramic oscillator (an external clock also possible)
· Voltage comparator (2 channels)
· Two operating modes MCU mode PROM mode (HD4074618)

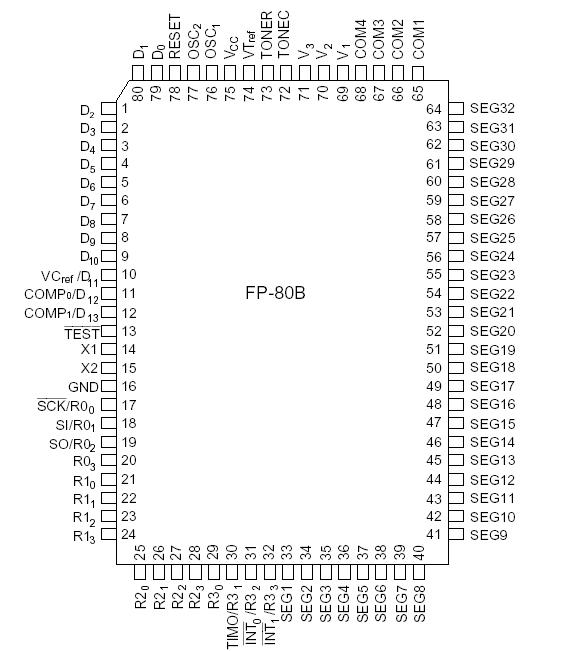

· Package 80-pin plastic flat package (FP-80B) (FP-80A) 80-pin plastic thin flat package (TFP-80)
HD404618
PDF/DataSheet Download
