HD49323AF-01

Features: ` Good suppression of CCD output low-frequency noise is achieved through the use of S/H type correlated double sampling.` A high S/N ratio is achieved through the use of a AGC type amplifier, and high sensitivity is provided by a wide cover range.` An auto offset circuit provides compens...

product image

HD49323AF-01 Picture
See larger image
SeekIC No. : 004360105 Detail

HD49323AF-01: Features: ` Good suppression of CCD output low-frequency noise is achieved through the use of S/H type correlated double sampling.` A high S/N ratio is achieved through the use of a AGC type amplifi...

HD49323AF-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD49323AF-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Good suppression of CCD output low-frequency noise is achieved through the use of S/H type correlated double sampling.
`  A high S/N ratio is achieved through the use of a AGC type amplifier, and high sensitivity is provided by a wide cover range.
`  An auto offset circuit provides compensation of output DC offset voltage fluctuations due to variations in AGC amplifier gain.
`  AGC, standby mode, offset control, etc., is possible via a serial interface.
`  High precision is provided by a 10-bit-resolution A/D converter.
`  Version of Hitachi's previous-generation HD49322BF with improved functions and performance, including in particular an approximately 3.0 dB improvement in S/N.

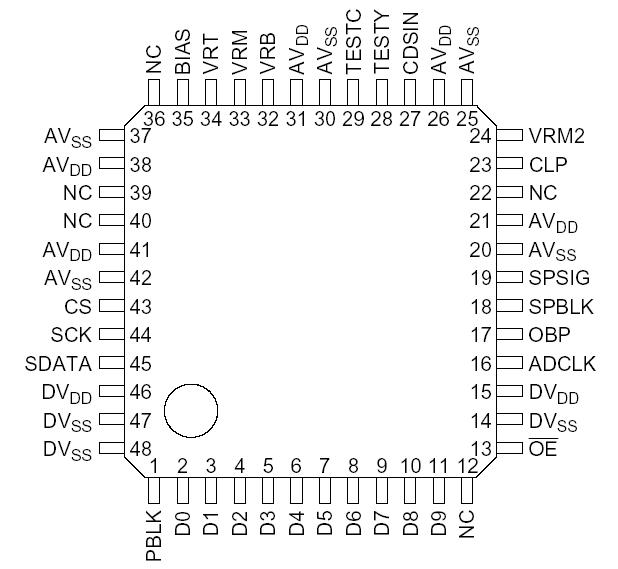

Pinout

Connection Diagram


Specifications

Item Symbol Ratings Unit
Power supply voltage VDD(max) 6.0 V
Power dissipation PD(max) 400 mW
Analog input voltage VIN(max) 0.3 to AVDD +0.3 V
Digital input voltage VI(max) 0.3 to 6.0 V
Operating temperature Topr 10 to +85 °C
Storage temperature Tstg 55 to +125 °C



Description

The HD49323AF-01 is a CMOS IC that provides CCD-AGC analog processing (CDS/AGC) suitable for CCD camera digital signal processing systems together with a 10-bit A/D converter in a single chip.
