Part Number: HD6433684G
Description: The H8/300H CPU supports the eight addressing modes listed in table 2.10. Each instruction uses a subset of these addre...
- Table of contents:
HD6433684G
-
Suppliers
DataSheet
General Description
HD6433684G General Description
The H8/300H CPU supports the eight addressing modes listed in table 2.10. Each instruction uses a subset of these addressing modes. Addressing modes that can be used differ depending on the instruction. For details, refer to appendix A.4, Combinations of Instructions and Addressing Modes.
Arithmetic and logic instructions can use the register direct and immediate modes. Data transfer instructions can use all addressing modes except program-counter relative and memory indirect. Bit-manipulation instructions use register direct, register indirect, or the absolute addressing mode (@aa:8) to specify an operand, and register direct (BSET, BCLR, BNOT, and BTST instructions) or immediate (3-bit) addressing mode to specify a bit number in the operand.
HD6433684G Maximum Ratings
| Item | Symbol | Value | Unit | Note | |
| Power supply voltage | VCC | 0.3 to +7.0 | V | * | |
| Analog power supply voltage | AVCC | 0.3 to +7.0 | V | ||
| Input voltage | Ports other than ports B and X1 |
VIN | 0.3 to VCC +0.3 | V | |
| Port B | 0.3 to AVCC +0.3 | V | |||
| X1 | 0.3 to 4.3 | V | |||
| Operating temperature | Topr | 20 to +75 | °C | ||
| Storage temperature | Tstg | 55 to +125 | °C | ||
HD6433684G Features
•High-speed H8/300H central processing unit with an internal 16-bit architecture
-Upward-compatible with H8/300 CPU on an object level
-Sixteen 16-bit general registers
-62 basic instructions
•Various peripheral functions
-RTC (can be used as a free running counter)
-Timer B1 (8-bit timer)
-Timer V (8-bit timer)
-Timer Z (16-bit timer)
-14-bit PWM
-SCI (Asynchronous or clocked synchronous serial communication interface) ×2 channels
-I2C Bus Interface (conforms to the I2C bus interface format that is advocated by Philips Electronics)
-10-bit A/D converter
-Upward-compatible with H8/300 CPU on an object level
-Sixteen 16-bit general registers
-62 basic instructions
•Various peripheral functions
-RTC (can be used as a free running counter)
-Timer B1 (8-bit timer)
-Timer V (8-bit timer)
-Timer Z (16-bit timer)
-14-bit PWM
-SCI (Asynchronous or clocked synchronous serial communication interface) ×2 channels
-I2C Bus Interface (conforms to the I2C bus interface format that is advocated by Philips Electronics)
-10-bit A/D converter
HD6433684G Typical Application
•Interrupt edge select register 1 (IEGR1)
•Interrupt edge select register 2 (IEGR2)
•Interrupt enable register 1 (IENR1)
•Interrupt enable register 2 (IENR2)
•Interrupt flag register 1 (IRR1)
•Interrupt flag register 2 (IRR2)
•Wakeup interrupt flag register (IWPR)
•Interrupt edge select register 2 (IEGR2)
•Interrupt enable register 1 (IENR1)
•Interrupt enable register 2 (IENR2)
•Interrupt flag register 1 (IRR1)
•Interrupt flag register 2 (IRR2)
•Wakeup interrupt flag register (IWPR)

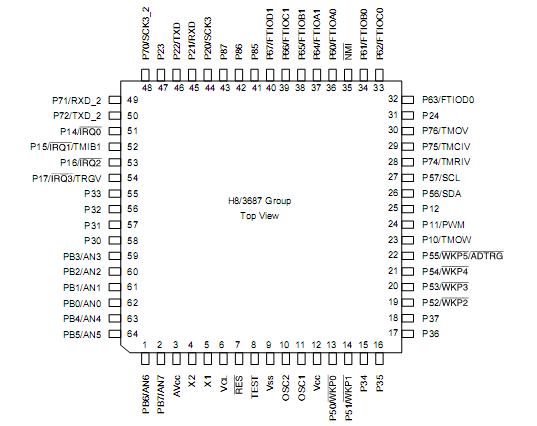

HD6433684G Connection Diagram
HD6433684G
