HD6433685G
-
Suppliers
DataSheet
General Description
HD6433685G Maximum Ratings
| Item | Symbol | Value | Unit | Note | |
| Power supply voltage | VCC | 0.3 to +7.0 | V | * | |
| Analog power supply voltage | AVCC | 0.3 to +7.0 | V | ||
| Input voltage | Ports other than ports B and X1 |
VIN | 0.3 to VCC +0.3 | V | |
| Port B | 0.3 to AVCC +0.3 | V | |||
| X1 | 0.3 to 4.3 | V | |||
| Operating temperature | Topr | 20 to +75 | °C | ||
| Storage temperature | Tstg | 55 to +125 | °C | ||
HD6433685G Features
•High-speed H8/300H central processing unit with an internal 16-bit architecture
-Upward-compatible with H8/300 CPU on an object level
-Sixteen 16-bit general registers
-62 basic instructions
•Various peripheral functions
-RTC (can be used as a free running counter)
-Timer B1 (8-bit timer)
-Timer V (8-bit timer)
-Timer Z (16-bit timer)
-14-bit PWM
-SCI (Asynchronous or clocked synchronous serial communication interface) ×2 channels
-I2C Bus Interface (conforms to the I2C bus interface format that is advocated by Philips Electronics)
-10-bit A/D converter
-Upward-compatible with H8/300 CPU on an object level
-Sixteen 16-bit general registers
-62 basic instructions
•Various peripheral functions
-RTC (can be used as a free running counter)
-Timer B1 (8-bit timer)
-Timer V (8-bit timer)
-Timer Z (16-bit timer)
-14-bit PWM
-SCI (Asynchronous or clocked synchronous serial communication interface) ×2 channels
-I2C Bus Interface (conforms to the I2C bus interface format that is advocated by Philips Electronics)
-10-bit A/D converter

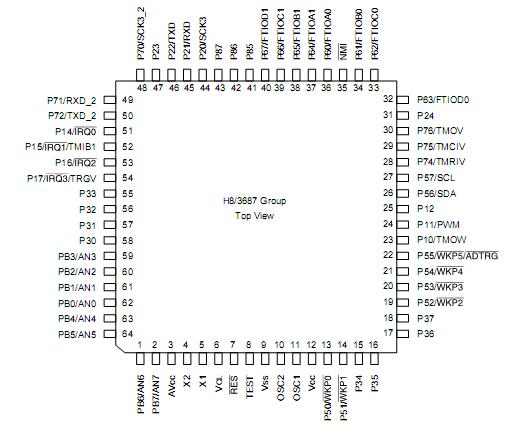

HD6433685G Connection Diagram
HD6433685G
PDF/DataSheet Download
- Datasheet: HD6433685G
- File Size: 2551135 KB
- Manufacturer: RENESAS [Renesas Technology Corp]
- Click here to Download
