Purchase HD66710, In-stock HD66710 From SeekIC.
Part Number: HD66710
Description: The HD66710 dot-matrix liquid crystal display controller and driver LSI displays alphanumerics,numbers, and symb...
- Table of contents:
HD66710
-
Suppliers
DataSheet
General Description
HD66710 General Description
The HD66710 dot-matrix liquid crystal display controller and driver LSI displays alphanumerics,numbers, and symbols. It can be configured to drive a dot-matrix liquid crystal display under the control of a 4- or 8-bit microprocessor. Since all the functions such as display RAM, character generator, and liquid crystal driver, required for driving a dot-matrix liquid crystal display are internally provided on one chip, a minimum system can be interfaced with this controller/driver.
A single HD66710 is capable of displaying a single16-character line, two 16-character lines, or up to four 8-character lines.
The HD66710 software is upwardly compatible with the LCD-II (HD44780) which allows the user to easily replace an LCD-II with an HD66710. In addition, the HD66710 is equipped with functions such as segment displays for icon marks, a 4-line display mode, and a horizontal smooth scroll, and thus supports various display forms. This achieves various display forms. The HD66710 character generator ROM is extended to generate 240 5 ? 8 dot characters.
The low voltage version (2.7V) of the HD66710, combined with a low power mode, is suitable for any portable battery-driven product requiring low power dissipation.
HD66710 Features
5 * 8 dot matrix possible
Low power operation support:2.7V to 5.5V (low voltage)
Booster for liquid crystal voltage-Two/three times (13V max.)
Wide range of liquid crystal display driver voltage 3.0V to 13V
Extension driver interface
High-speed MPU bus interface (2 MHz at 5-V operati
4-bit or 8-bit MPU interface capability
80 * 8-bit display RAM (80 characters max.)

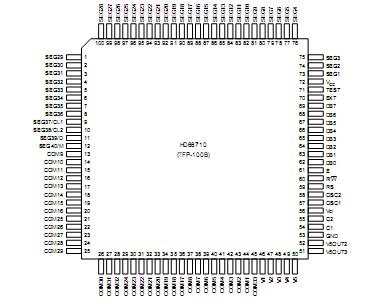

HD66710 Connection Diagram
HD66710
PDF/DataSheet Download
- Datasheet: HD66710
- File Size: 526135 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
