General Description
HD74AC123A General Description
Each half of the HD74AC123A features retriggerable capability, complementary dc level triggering and overriding Direct Clear. When a circuit is in the quasi-stable (delay) state, another trigger applied to the inputs (per the Truth Table) will cause the delay period to start again, without disturbing the outputs. By repeating this process, the output pulse period (Q High, Q Low) can be made as long as desired. Alternatively, a delay period can be terminated at any time by a Low signal on CD, which also inhibits triggering. An internal connection from CD to the input gate makes it possible to trigger the circuit by positive-going signal on CD, as shown in the Truth Table. For timing capacitor values greater than 1000 pF, the output pulse width is defined as follows.
HD74AC123A Maximum Ratings
| Item | Symbol | Max | Unit | Condition |
| Maximum quiescent supply current | ICC | 80 | A | VIN = VCC or ground, VCC = 5.5 V, Ta = Worst case |
| Maximum quiescent supply current | ICC | 8.0 | A | VIN = VCC or ground, VCC = 5.5 V, Ta = 25°C |
HD74AC123A Features
· Outputs Source/Sink 24 mA

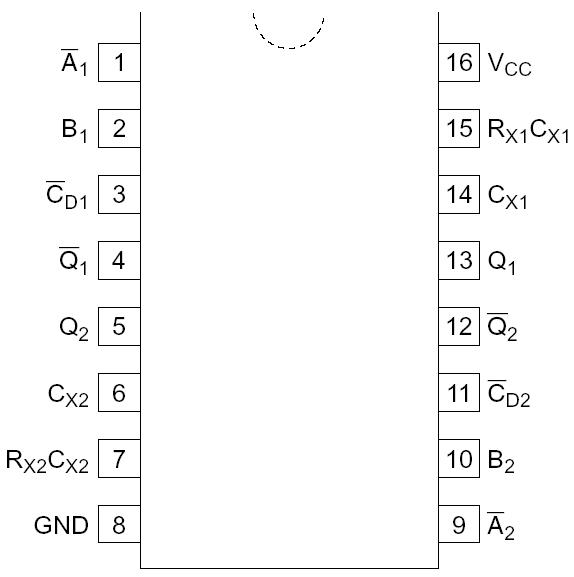

HD74AC123A Connection Diagram
HD74AC123A
PDF/DataSheet Download
- Datasheet: HD74AC123A
- File Size: 51386 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
