HD74AC14

Features:

·  Outputs Source/Sink 24 mA

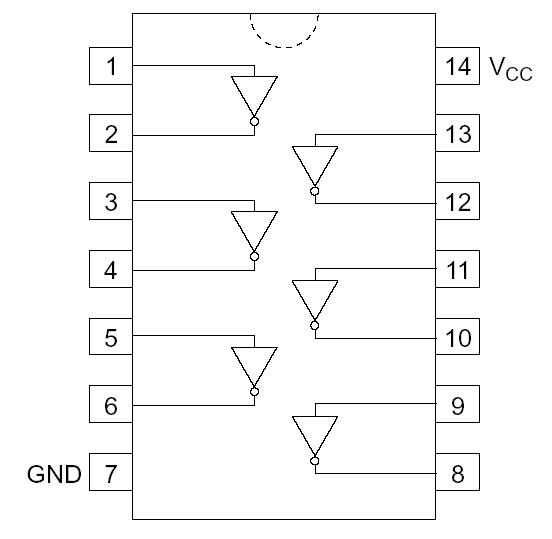

Pinout




Specifications

Item	Symbol	Typ	Unit	Condition
Input capacitance	CIN	4.5	pF	VCC = 5.5 V
Power dissipation capacitance	CPD	25.0	pF	VCC = 5.0 V

Description

The HD74AC14 contains six logic inverters which accept standard CMOS input signals (TTL levels for HD74ACT14) and provide standard CMOS output levels. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, they have a greater noise margin than conventional inverters.

The HD74AC14 has hysteresis between the positive-going and negative-going input thresholds (typically 1.0 V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
