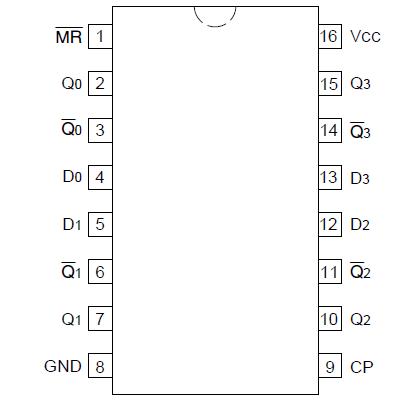

Features: · Edge-Triggered D-Type Inputs· Buffered Positive Edge-Triggered Clock· Asynchronous Common Reset· True and Complement Output· Outputs Source/Sink 24 mAPinoutDescriptionThe HD74AC175 is a high-speed quad D flip-flop. The HD74AC175 is useful for general flip-flop requirements where clock ...
HD74AC175: Features: · Edge-Triggered D-Type Inputs· Buffered Positive Edge-Triggered Clock· Asynchronous Common Reset· True and Complement Output· Outputs Source/Sink 24 mAPinoutDescriptionThe HD74AC175 is a ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The HD74AC175 is a high-speed quad D flip-flop. The HD74AC175 is useful for general flip-flop requirements where clock and clear inputs are common. The information on the D inputs is stored during the Low-to- High clock transition. Both true and complemented outputs of each flip-flop are provided. A Master Reset input resets all flip-flops, independent of the Clock or D inputs, when Low.
