General Description
HD74ALVC2G14 General Description
The HD74ALVC2G14 has triple inverters with schmitt-trigger input in an 8 pin package. Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
HD74ALVC2G14 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
Conditions |
| Supply voltage |
VCC |
0.5 to 4.6 |
V |
|
| Input voltage *1 |
VI |
0.5 to 4.6 |
V |
|
| Output voltage *1,2 |
VO |
0.5 to VCC +0.5 |
V |
Output : L or Z |
|
0.5 to 4.6 |
VCC : OFF | |||
| Input clamp current |
IIK |
-50 |
mA |
VI < 0 |
| Output clamp current |
IOK |
±50 |
mA |
VO<0 or VO>VCC |
| Continuous output current |
IO |
±50 |
mA |
VO = 0 to VCC |
| Continuous current through VCC or GND | ICC or IGND |
±100 |
mA |
|
| Maximum power dissipation at Ta = 25°C (in still air)*3 |
PT |
200 |
mW |
|
| Storage temperature |
Tstg |
65 to 150 |
°C |
Notes: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150°C.
HD74ALVC2G14 Features
• The basic gate function is lined up as Renesas uni logic series.
• Supplied on emboss taping for high-speed automatic mounting.
• Supply voltage range : 1.2 to 3.6 V
Operating temperature range: −40 to +85°C
• All inputs VIH (Max.) = 3.6 V (@VCC = 0 V to 3.6 V)
All outputs VO (Max.) = 3.6 V (@VCC = 0 V)
• Output current ±2 mA (@VCC = 1.2 V)
±4 mA (@VCC = 1.4 V to 1.6 V)
±6 mA (@VCC = 1.65 V to 1.95 V)
±18 mA (@VCC = 2.3 V to 2.7 V)
±24 mA (@VCC = 3.0 V to 3.6 V)
• All the logical input has hysteresis voltage for the slow transition.
• Ordering Information
• Supplied on emboss taping for high-speed automatic mounting.
• Supply voltage range : 1.2 to 3.6 V
Operating temperature range: −40 to +85°C
• All inputs VIH (Max.) = 3.6 V (@VCC = 0 V to 3.6 V)
All outputs VO (Max.) = 3.6 V (@VCC = 0 V)
• Output current ±2 mA (@VCC = 1.2 V)
±4 mA (@VCC = 1.4 V to 1.6 V)
±6 mA (@VCC = 1.65 V to 1.95 V)
±18 mA (@VCC = 2.3 V to 2.7 V)
±24 mA (@VCC = 3.0 V to 3.6 V)
• All the logical input has hysteresis voltage for the slow transition.
• Ordering Information

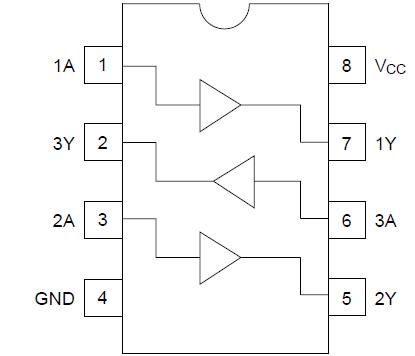

HD74ALVC2G14 Connection Diagram
HD74ALVC2G14
PDF/DataSheet Download
- Datasheet: HD74ALVC2G14
- File Size: 91414 KB
- Manufacturer: RENESAS [Renesas Technology Corp]
- Click here to Download
