Features:

·  VCC = 2.3 V to 3.6 V
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
·  High output current ±12 mA (@VCC = 3.0 V)
·  Bus hold on data inputs eliminates the need for external pullup / pulldown resistors
·  All outputs have equivalent 26 W series resistors, so no external resistors are required
·  Diode on inputs clamp overshoot



Pinout

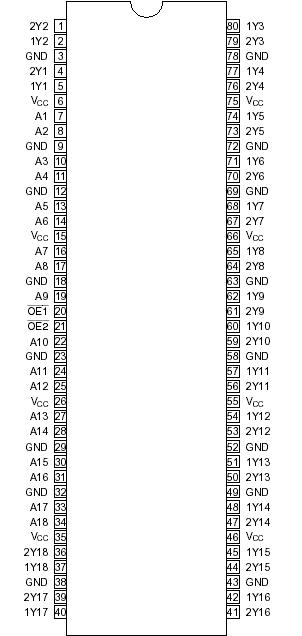

  Connection Diagram


Specifications

Item Symbol Ratings Unit Conditions
Supply voltage range VCC -0.5 to 4.6 V
Input voltage range *1 VI -0.5 to 4.6 V
Output voltage range *1, 2 VO -0.5 to VCC+0.5 V Output : H or L
-0.5 to 4.6 V VCC : OFF
Input clamp current IIK -50 mA VI < 0
Output clamp current IOK ±50 mA VO < 0 or VO > VCC
Continuous output current IO ±50 mA VO = 0 to VCC
Continuous current through
VCC or GND
ICC or IGND ±100 mA
Maximum power dissipation
at Ta = 25°C (in still air) *3
PT 1 W TVSOP
Storage temperature Tstg -65 to 150 °C



Description

This HD74ALVCHS162830 1-bit to 2-bit address driver is designed for 2.3 V to 3.6 V VCC operation. To ensure the high impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current sinking capability of the driver. Active HD74ALVCHS162830 bus hold circuitry is provided to hold unused or floating inputs at a valid logic level. All outputs, which are designed to sink up to 12 mA, include equivalent 26 W resistors to reduce overshoot and undreshoot. Diodes to VCC have been added on the inputs to clamp overshoot.
