Product Details

Description



Features:

`  Input/Output are at high impedance state when power supply is off.
`  Input pins can be open, when not used, owing to built in input pull up circuit.
`  Input is TTL level.
`  Wide operating temperature range Ta = 40 to +85°C.



Pinout

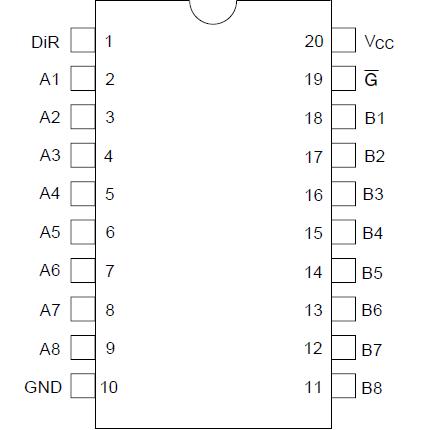

  Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply voltage
VCC
0.5 to +7.0
V
Input diode current
IIK
±30
mA
Input voltage
VIN
0.5 to +7.5
V
Output voltage
VOUT
0.5 to +7.5
V
Off state output voltage
VOUT(off)
0.5 to +5.5
V
Storage temperature
Tstg
65 to +150
°C
Note: 1. The absolute maximum ratings are values which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.


Description

The HD74BC640A provides high drivability and operation equal to or better than high speed bipolar standard logic IC by using Bi-CMOS process. The HD74BC640A features low power dissipation that is about 1/5 of high speed bipolar logic IC. When the frequency is 10 MHz. The HD74BC640A has eight bus transceivers with three state outputs in a 20 pin package. Each device has an active low enable input (G) and a direction control input, DiR. When DiR is high, data flows from the A inputs to the B outputs. When DiR is high, data flows from the B inputs to the A outputs. When enable inputs (G) is high, disables both A and B ports by placing then in a high impedance.
