Part Number: HD74HC109
Description: Each flip-flop has independent J, K, preset, clear and clock inputs and Q and Q outputs. This device is edge sensitive ...
- Table of contents:
HD74HC109
-
Suppliers
DataSheet
General Description
HD74HC109 General Description
Each flip-flop has independent J, K, preset, clear and clock inputs and Q and Q outputs. This device is edge sensitive to the clock input and changes state on the positive going transition of the clock pulse. Clear and preset are independent of the clock and accomplished by a low logic level on the corresponding input.
HD74HC109 Features
· High Speed Operation: tpd (Clock to Q) = 15 ns typ (CL = 50 pF)
· High Output Current: Fanout of 10 LSTTL Loads
· Wide Operating Voltage: VCC = 2 to 6 V
· Low Input Current: 1 µA max
· Low Quiescent Supply Current: ICC (static) = 2 µA max (Ta = 25°C)
· High Output Current: Fanout of 10 LSTTL Loads
· Wide Operating Voltage: VCC = 2 to 6 V
· Low Input Current: 1 µA max
· Low Quiescent Supply Current: ICC (static) = 2 µA max (Ta = 25°C)

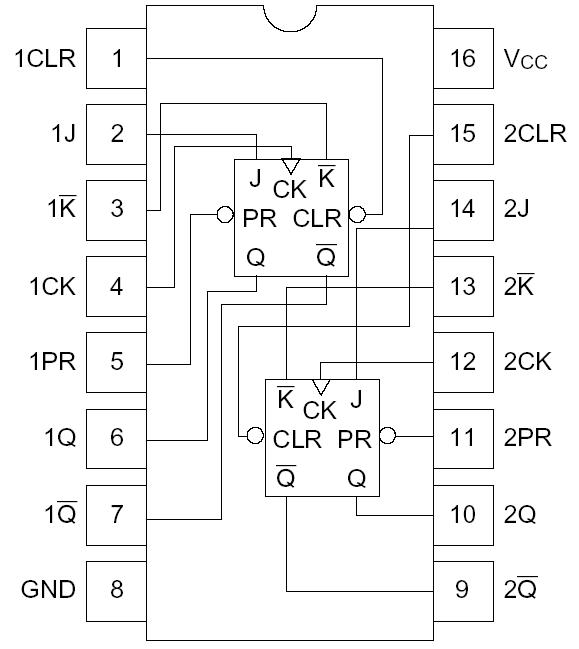

HD74HC109 Connection Diagram
HD74HC109
PDF/DataSheet Download
- Datasheet: HD74HC109
- File Size: 61362 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
