Purchase HD74HC11, In-stock HD74HC11 From SeekIC.
- Table of contents:
HD74HC11
-
Suppliers
DataSheet
General Description
HD74HC11 Features
` High Speed Operation: tpd = 9 ns typ (CL = 50 pF)
` High Output Current: Fanout of 10 LSTTL Loads
` Wide Operating Voltage: VCC = 2 to 6 V
` Low Input Current: 1 A max
` Low Quiescent Supply Current: ICC (static) = 1 A max (Ta = 25°C)
` High Output Current: Fanout of 10 LSTTL Loads
` Wide Operating Voltage: VCC = 2 to 6 V
` Low Input Current: 1 A max
` Low Quiescent Supply Current: ICC (static) = 1 A max (Ta = 25°C)

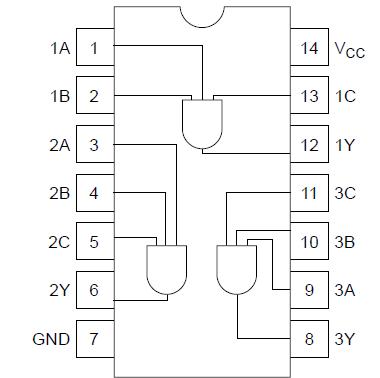

HD74HC11 Connection Diagram
HD74HC11
PDF/DataSheet Download
- Datasheet: HD74HC11
- File Size: 40340 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
