Part Number: HD74HC114
Description: This flip-flop is edge sensitive to the clock input and change state on the negative transition of the clock pulse. each flip-flop has ind...
- Table of contents:
HD74HC114
-
Suppliers
DataSheet
General Description
HD74HC114 General Description
This flip-flop is edge sensitive to the clock input and change state on the negative transition of the clock pulse. each flip-flop has independent J, K and preset inputs and Q and Q outputs. Two flip-flops are controlled by a common clear and a common clock. Preset and clear are independent of the clock and accomplished by a low logic level on the corresponding input.
HD74HC114 Features
· High Speed Operation: tpd (Clock to Q) = 18 ns typ (CL = 50 pF)
· High Output Current: Fanout of 10 LSTTL Loads
· Wide Operating Voltage: VCC = 2 to 6 V
· Low Input Current: 1 µA max
· Low Quiescent Supply Current: ICC (static) = 2 µA max (Ta = 25°C)
· High Output Current: Fanout of 10 LSTTL Loads
· Wide Operating Voltage: VCC = 2 to 6 V
· Low Input Current: 1 µA max
· Low Quiescent Supply Current: ICC (static) = 2 µA max (Ta = 25°C)

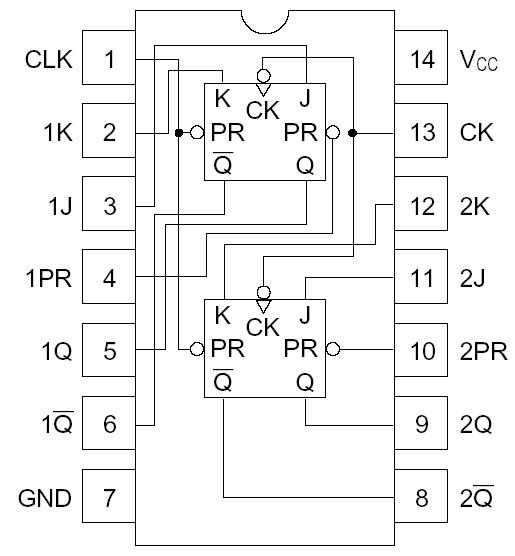

HD74HC114 Connection Diagram
HD74HC114
PDF/DataSheet Download
- Datasheet: HD74HC114
- File Size: 50176 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
