HD74HC148

Features: • High Speed Operation: tpd(0 - 7 to A0- A2) = 15 ns typ (CL= 50 pF)• High Output Current: Fanout of 10 LSTTL Loads• Wide Operating Voltage: VCC= 2 to 6 V• Low Input Current: 1 µA max• Low Quiescent Supply Current: ICC(static) = 4 µA max (Ta = 25...

product image

HD74HC148 Picture
See larger image
SeekIC No. : 004360631 Detail

HD74HC148: Features: • High Speed Operation: tpd(0 - 7 to A0- A2) = 15 ns typ (CL= 50 pF)• High Output Current: Fanout of 10 LSTTL Loads• Wide Operating Voltage: VCC= 2 to 6 V• Low Inpu...

HD74HC148 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74HC148
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed Operation:  tpd (0 - 7 to A0 - A2) = 15 ns typ (CL= 50 pF)
• High Output Current:  Fanout of 10 LSTTL Loads
• Wide Operating Voltage:  VCC = 2 to 6 V
• Low Input Current:  1 µA max
• Low Quiescent Supply Current:  ICC (static) = 4 µA max (Ta = 25°C)


Pinout

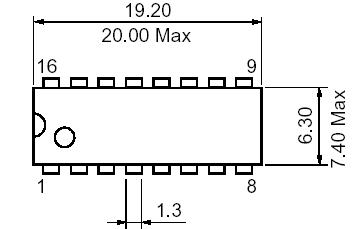

Connection Diagram


Description

   The HD74HC148 encodes eight data lines to three-line (4-2-1) binary (octal).  Cascading circuitry (enable input EI and enable output EO) is provided to allow octal expansion without the need for external circuitry.

   The data inputs and outputs of HD74HC148  are active at the low logic level.
