HD74HC1G00

Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Electrical characteristics equivalent to the HD74HC00 Supply voltage range : 2 to 6 VOperating temperature range : 40 to +85• |IOH| = ...

product image

HD74HC1G00 Picture
SeekIC No. : 004360640 Detail

HD74HC1G00: Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Electrical characteristics equivalent to...

floor Price/Ceiling Price

Part Number:
HD74HC1G00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The basic gate function is lined up as Renesas uni logic series.
• Supplied on emboss taping for high-speed automatic mounting.
• Electrical characteristics equivalent to the HD74HC00 Supply voltage range : 2 to 6 V
Operating temperature range : 40 to +85
• |IOH| = IOL = 2 mA (min)
• Ordering Information




Pinout

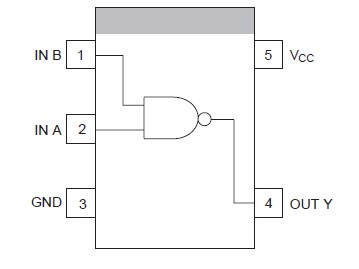

  Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Test Conditions
Supply voltage range
VCC
0.5 to 7.0
V
Input voltage range *1
VI
0.5 to VCC + 0.5
V
Output voltage range *1, 2
VO
0.5 to VCC + 0.5
V
Output : H or L
Input clamp current
IIK
±20
mA
VI < 0 or VI > VCC
Output clamp current
IOK
±20
mA
VO < 0 or VO >VCC
Continuous output current
IO
±25
mA
VO = 0 to VCC
Continuous current through
VCC or GND
ICC or IGND
±25
mA
Maximum power dissipation
at Ta = 25 (in still air) *3
PT
200
mW
Storage temperature
Tstg
65 to 150

Notes: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150.




Description

The HD74HC1G00 is high-speed CMOS two input NAND gate using silicon gate CMOS process. With CMOS low power dissipation, HD74HC1G00 provides high-speed equivalent to LSTTL series. The internal circuit of three stages construction with buffer provides wide noise margin and stable output.
