Part Number: HD74HC1G08
Description: The HD74HC1G08 is high speed CMOS two input AND gate using silicon gate CMOS process. With CMOS low po...
- Table of contents:
HD74HC1G08
-
Suppliers
DataSheet
General Description
HD74HC1G08 General Description
The HD74HC1G08 is high speed CMOS two input AND gate using silicon gate CMOS process. With CMOS low power dissipation, it provides high-speed equivalent to LSTTL series. The internal circuit of three stages construction with buffer provides wide noise margin and stable output.
HD74HC1G08 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
Test Conditions |
| Supply voltage range |
VCC |
0.5 to 7.0 |
V |
|
| Input voltage range *1 |
VI |
0.5 to VCC + 0.5 |
V |
|
| Output voltage range *1, 2 |
VO |
0.5 to VCC + 0.5 |
V |
Output : H or L |
| Input clamp current |
IIK |
±20 |
mA |
VI < 0 or VI > VCC |
| Output clamp current |
IOK |
±20 |
mA |
VO < 0 or VO >VCC |
| Continuous output current |
IO |
±25 |
mA |
VO = 0 to VCC |
| Continuous current through VCC or GND |
ICC or IGND |
±25 |
mA |
|
| Maximum power dissipation at Ta = 25 (in still air) *3 |
PT |
200 |
mW |
|
| Storage temperature |
Tstg |
65 to 150 |
Notes: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150.
HD74HC1G08 Features
• The basic gate function is lined up as Renesas uni logic series.
• Supplied on emboss taping for high-speed automatic mounting.
• Electrical characteristics equivalent to the HD74HC08 Supply voltage range : 2 to 6 V Operating temperature range : 40 to +85
• |IOH| = IOL = 2 mA (min)
• Ordering Information

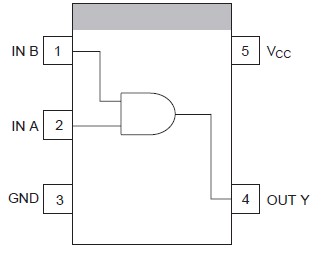

HD74HC1G08 Connection Diagram
HD74HC1G08CME
PDF/DataSheet Download
- Datasheet: HD74HC1G08CME
- File Size: 53766 KB
- Manufacturer: RENESAS [Renesas Technology Corp]
- Click here to Download
