Part Number: HD74HC1GU04
Description: The HD74HC1GU04 is high speed CMOS unbuffered inverter using silicon gate CMOS process. WithCMOS low power dissip...
- Table of contents:
HD74HC1GU04
-
Suppliers
DataSheet
General Description
HD74HC1GU04 General Description
The HD74HC1GU04 is high speed CMOS unbuffered inverter using silicon gate CMOS process. WithCMOS low power dissipation, it provides high speed equivalent to LSTTL series.
HD74HC1GU04 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
Test Conditions |
| Supply voltage range |
VCC |
0.5 to 7.0 |
V |
|
| Input voltage range*1 |
VI |
0.5 to VCC + 0.5 |
V |
|
| Output voltage range*1, 2 |
VO |
0.5 to VCC + 0.5 |
V |
Output : H or L |
| Input clamp current |
IIK |
±20 |
mA |
VI< 0 or VI> VCC |
| Output clamp current |
IOK |
±20 |
mA |
VO < 0 or VO>VCC |
| Continuous output current |
IO |
±25 |
mA |
V = 0 to V |
| Continuous current throuVcc or GND |
ICC orIGND |
±25 |
mA |
|
| Maximum power dissipatioat Ta = 25 (in still air) *3 |
PT |
200 |
mW |
|
| Storage temperature |
Tstg |
65 to 150 |
HD74HC1GU04 Features
• The basic gate function is lined up as hitachi uni logic series.
• Supplied on emboss taping for high speed automatic mounting.
• Supply voltage range : 2 to 6 VOperating temperature range : 40 to +85
• |IOH| = IOL = 2 mA (min)
• Supplied on emboss taping for high speed automatic mounting.
• Supply voltage range : 2 to 6 VOperating temperature range : 40 to +85
• |IOH| = IOL = 2 mA (min)

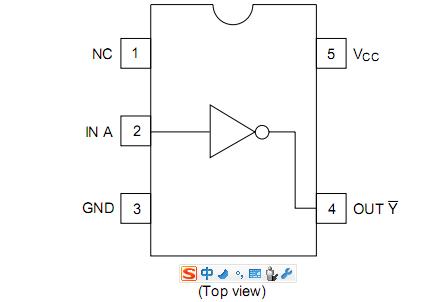

HD74HC1GU04 Connection Diagram
HD74HC1GU04
PDF/DataSheet Download
- Datasheet: HD74HC1GU04
- File Size: 50092 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
