Product Details

Description

Features:

· High Speed Operation: tpd = 10 ns typ (C_L= 50 pF)
· High Output Current: Fanout of 15 LSTTL Loads
· Wide Operating Voltage: V_CC = 2 to 6 V
· Low Input Current: 1 µA max
· Low Quiescent Supply Current: I_CC (static) = 4 µA max (T_a = 25°C)

Pinout

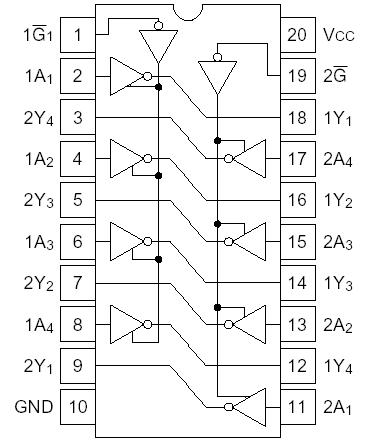

Connection Diagram

Specifications

Item	Symbol	Rating	Unit
Supply voltage range Input voltage Output voltage DC current drain per pin DC current drain per V_CC, GND DC input diode current DC output diode current Power dissipation per package Storage temperature	V_CC V_IN V_OUT I_OUT I_CC, I_GND I_IK I_OK P_T T_stg	0.5 to +7.0 0.5 to V_CC + 0.5 0.5 to V_CC + 0.5 ±35 ±75 ±20 ±20 500 65 to +150	V V V mA mA mA mA mW °C

Description

The HD74HC240 is an inverting buffer and has two active low enables (1G and 2G). Each enable independently controls 4 buffers. This device does not have schmitt trigger inputs.
