Purchase HD74HC74, In-stock HD74HC74 From SeekIC.
MFG:HITACHI Package Cooled:TSOP
Part Number: HD74HC74
MFG: HITACHI
Package Cooled: TSOP
Description: The flip-flop has independent data, preset, clear, and clock inputs and Q and
HD74HC74 General Description
The flip-flop has independent data, preset, clear, and clock inputs and Q and Q outputs. The logic level present at thte data input is transferred to the output during the positive going transition to the clock pulse. Preset and clear are independent of the clock and accomplished by a low level at the appropriate input.
HD74HC74 Features
` High Speed Operation: tpd (Clock to Q or Q) = 14 ns typ (CL = 50 pF)
` High Output Current: Fanout of 10 LSTTL Loads
` Wide Operating Voltage: VCC = 2 to 6 V
` Low Input Current: 1 A max
` Low Quiescent Supply Current: ICC (static) = 2 A max (Ta = 25°C)
` High Output Current: Fanout of 10 LSTTL Loads
` Wide Operating Voltage: VCC = 2 to 6 V
` Low Input Current: 1 A max
` Low Quiescent Supply Current: ICC (static) = 2 A max (Ta = 25°C)

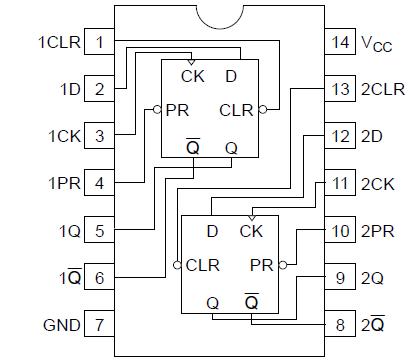

HD74HC74 Connection Diagram
HD74HC74
PDF/DataSheet Download
- Datasheet: HD74HC74
- File Size: 57300 KB
- Manufacturer: Renesas
- Click here to Download
