Part Number: HD74LV2G08A
Description: The HD74LV2G08A has dual twoinputs AND gates in a 8 pin package. Low voltage and high speed operation ...
- Table of contents:
HD74LV2G08A
-
Suppliers
DataSheet
General Description
HD74LV2G08A General Description
The HD74LV2G08A has dual twoinputs AND gates in a 8 pin package. Low voltage and high speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
HD74LV2G08A Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
Test Conditions |
|
Supply voltage range |
VCC |
0.5 to 7.0 |
V |
|
|
Input voltage range *1 |
VI |
0.5 to 7.0 |
V |
|
|
Output voltage range *1, 2 |
VO |
0.5 to VCC + 0.5 |
V |
Output : H or L |
|
Input clamp current |
IIK |
20 |
mA |
VI < 0 |
|
Output clamp current |
IOK |
±50 |
mA |
VO < 0 or VO > VCC |
|
Continuous output current |
IO |
±25 |
mA |
VO = 0 to VCC |
|
Continuous current through |
ICC or IGND |
±50 |
mA |
|
|
Maximum power dissipation |
PT |
200 |
mW |
|
|
Storage temperature |
Tstg |
65 to 150 |
°C |
HD74LV2G08A Features
• The basic gate function is lined up as hitachi uni logic series.
• Supplied on emboss taping for high speed automatic mounting.
• Electrical characteristics equivalent to the HD74LV08A
Supply voltage range : 1.65 to 5.5 V
Operating temperature range : 40 to +85°C
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)
• All the logical input has hysteresis voltage for the slow transition.
• Supplied on emboss taping for high speed automatic mounting.
• Electrical characteristics equivalent to the HD74LV08A
Supply voltage range : 1.65 to 5.5 V
Operating temperature range : 40 to +85°C
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)
• All the logical input has hysteresis voltage for the slow transition.

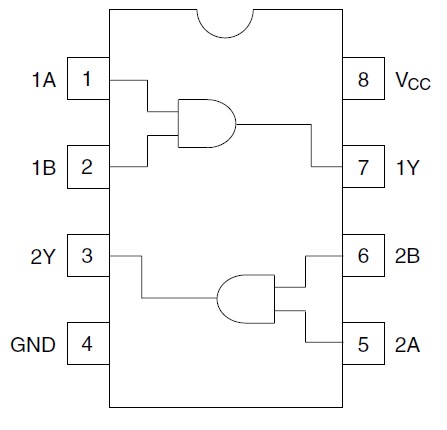

HD74LV2G08A Connection Diagram
