Purchase HD74LVC74, In-stock HD74LVC74 From SeekIC.
MFG:HITACHI D/C:03+
Part Number: HD74LVC74
MFG: HITACHI
D/C: 03+
Description: The HD74LVC74 has independent data, preset, clear, and clock inputs Q and
HD74LVC74 General Description
The HD74LVC74 has independent data, preset, clear, and clock inputs Q and Q outputs in a 14 pin package. The logic level present at the data input is transferred to the output during the positive going transition of the clock pulse. Preset and clear are independent of the clock and accomplished by a low level at the appropriate input. Low voltage and high speed operation is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
HD74LVC74 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
Conditions |
|
Supply voltage |
VCC |
0.5 to 6.0 |
V |
|
|
Input voltage |
VI |
0.5 to 6.0 |
V |
|
|
Output diode current |
IOK |
50 |
mA |
VO = 0.5 V |
|
50 |
VO = VCC +0.5 V | |||
|
Input diode current |
IIK |
50 |
mA |
VI = 0.5 V |
|
Output voltage |
VO |
0.5 to VCC +0.5 |
V |
|
|
Output current |
IO |
±50 |
mA |
|
|
VCC, GND current/ pin |
ICC or IGND |
±100 |
mA |
|
|
Storage temperature |
Tstg |
65 to 150 |
HD74LVC74 Features
· VCC = 2.0 V to 5.5 V
· All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
· High output current ±24 mA (@VCC = 3.0 V to 5.5 V)
· All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
· High output current ±24 mA (@VCC = 3.0 V to 5.5 V)

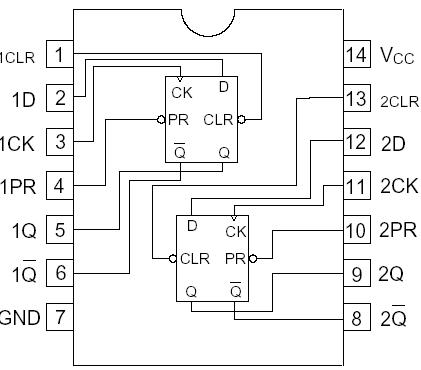

HD74LVC74 Connection Diagram
HD74LVC74
PDF/DataSheet Download
- Datasheet: HD74LVC74
- File Size: 53567 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
