Part Number: HD74LVCZ16245A
Description: The HD74LVCZ16245A has sixteen two direction buffers, for the fittest at two direction bus lines with three state outpu...
- Table of contents:
HD74LVCZ16245A
-
Suppliers
DataSheet
General Description
HD74LVCZ16245A General Description
The HD74LVCZ16245A has sixteen two direction buffers, for the fittest at two direction bus lines with three state outputs in a 48 pin package. When (DIR) is high, data flows from the A inputs to the B outputs, and when (DIR) is low, data flows from the B inputs to the A outputs. A and B bus are separated by making enable input (G) high level.
When VCC is between 0 and 1.5 V, the device is in the high impedance state during power up or power down.
Low voltage and high speed operation is suitable at battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
HD74LVCZ16245A Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
Conditions |
|
Supply voltage |
VCC |
0.5 to 7.0 |
V |
|
|
Input voltage |
VI |
0.5 to 7.0 |
V |
|
|
Input / output voltage |
VI/O |
0.5 to 7.0 |
V |
Output "Z" or VCC : OFF |
|
0.5 to VCC+0.5 |
Output "H" or "L" | |||
|
Input diode current |
IIK |
50 |
mA |
|
|
Output diode current |
IOK |
50 |
mA |
VI < 0 |
|
Output current |
IO |
±50 |
mA |
VO < 0 |
|
VCC, GND current |
ICC or IGND |
±100 |
mA |
|
|
Storage temperature |
Tstg |
65 to 150 |
HD74LVCZ16245A Features
· VCC = 2.7 to 5.5 V
· All inputs VIH (Max) = 5.5 V (@VCC = 0 to 5.5 V)
· All inputs / outputs VI/O (Max) = 5.5 V (@VCC = 0 V or output off state)
· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
· High impedance state during power up and power down
· Power off disables outputs, permitting live insertion
· High output current ±24 mA (@VCC = 3.0 to 5.5 V)
· All inputs VIH (Max) = 5.5 V (@VCC = 0 to 5.5 V)
· All inputs / outputs VI/O (Max) = 5.5 V (@VCC = 0 V or output off state)
· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
· High impedance state during power up and power down
· Power off disables outputs, permitting live insertion
· High output current ±24 mA (@VCC = 3.0 to 5.5 V)

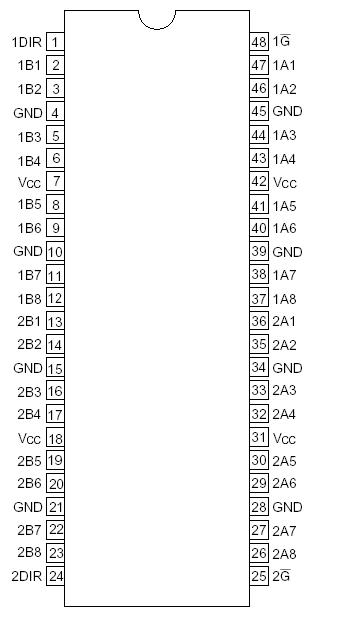

HD74LVCZ16245A Connection Diagram
HD74LVCZ16245A
PDF/DataSheet Download
- Datasheet: HD74LVCZ16245A
- File Size: 57864 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
